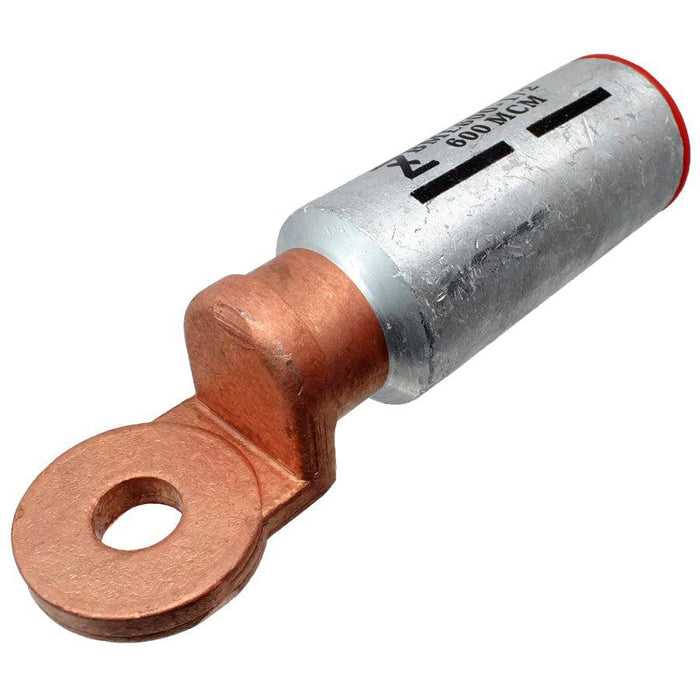

BML300-12 - Bimetallic Compression Lugs - 600MCM (300mm²) - 1/2" Stud
Original price
$28.53
-
Original price
$28.53
Original price
$28.53
$28.53
-
$28.53
Current price
$28.53
SKU BML300-12
Availability:
in stock, ready to be shipped
Bimetallic lugs are useful when an aluminum cable has to be terminated by a copper bus bar or copper contact. If only copper or aluminum lugs are used, a galvanic action occurs due to dissimilar contact. The use of bimetallic lugs thus ensures a technically sound and durable joint. The Aluminum barrel is friction welded to the copper palm, thereby achieving the best possible transition between barrel & palm.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 600MCM |
| A: | 135.0mm (5.31") |
| B: | 60.0mm (2.40") |
| D: | 23.5mm (0.93") |
| E: | 35.0mm (1.40") |
| G: | 38.0mm (1.50") |
| F: | 7.0mm (0.28") |
| Terminal Material: | Aluminum and Copper |
| Stud Size: | 1/2" |
| Operating Temperature: | -40oC - 100oC |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
