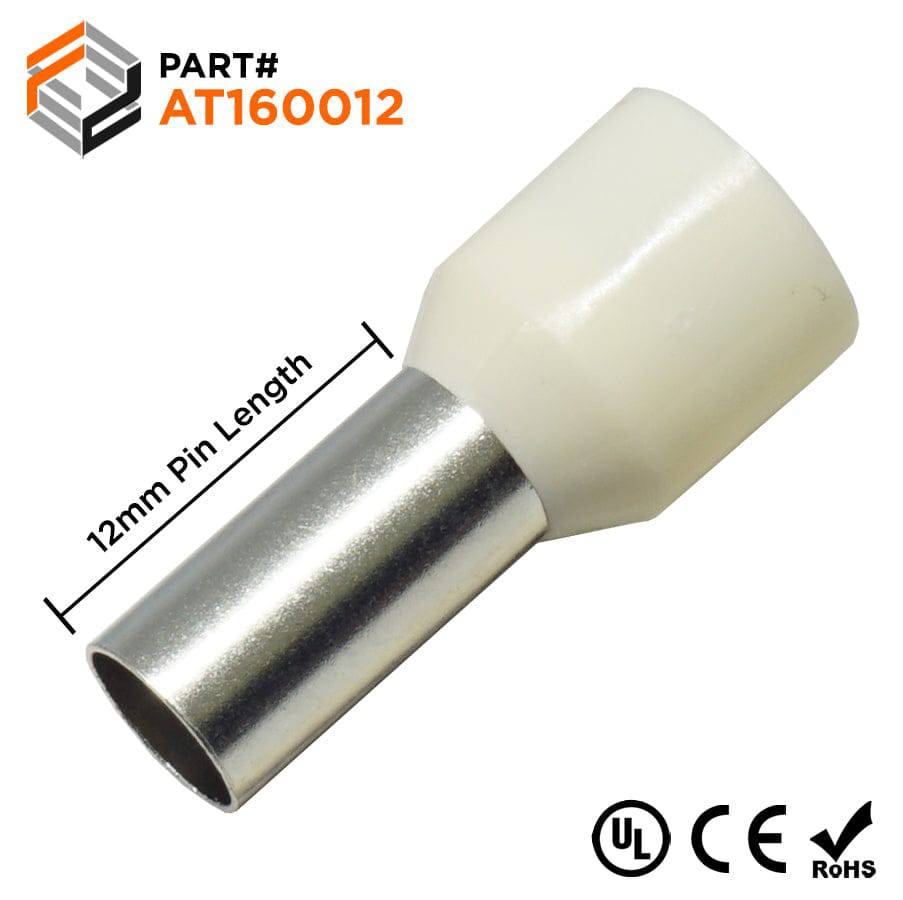

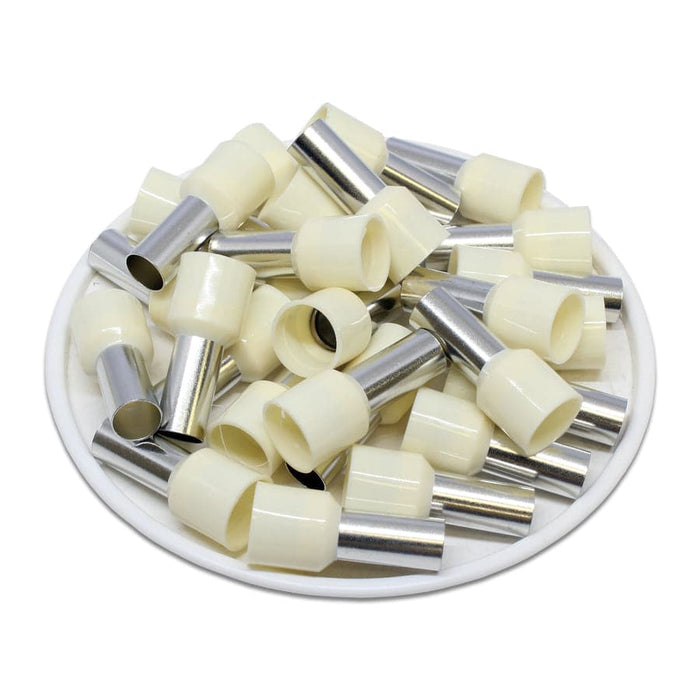

AT160012 - 6 AWG (12mm Pin) Insulated Ferrules - White
Original price
$6.22
-
Original price
$6.22
Original price
$6.22
$6.22
-
$6.22
Current price
$6.22
SKU AT160012
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUS001888
American Eclipse: 11123160
Eclipse: 701-121
Greenlee: 177/12
LeGrand: 376 72
Panduit: FSF84-12-C
Phoenix Contact: 3200140
Tyco AMP: 3-966 292-1
Weidmuller: 9021170000
ZF: 9021170000
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 6 AWG |
| Color: | White |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 95A |
| L1: | 22mm (0.87") |
| L2: | 12.0mm (0.47") |
| D: | 6.2mm (0.24") |
| D1: | 5.8mm (0.228") |
| D2: | 8.8mm (0.35") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUS001888
American Eclipse: 11123160
Eclipse: 701-121
Greenlee: 177/12
LeGrand: 376 72
Panduit: FSF84-12-C
Phoenix Contact: 3200140
Tyco AMP: 3-966 292-1
Weidmuller: 9021170000
ZF: 9021170000
Documents
Click to view product spec sheet:
