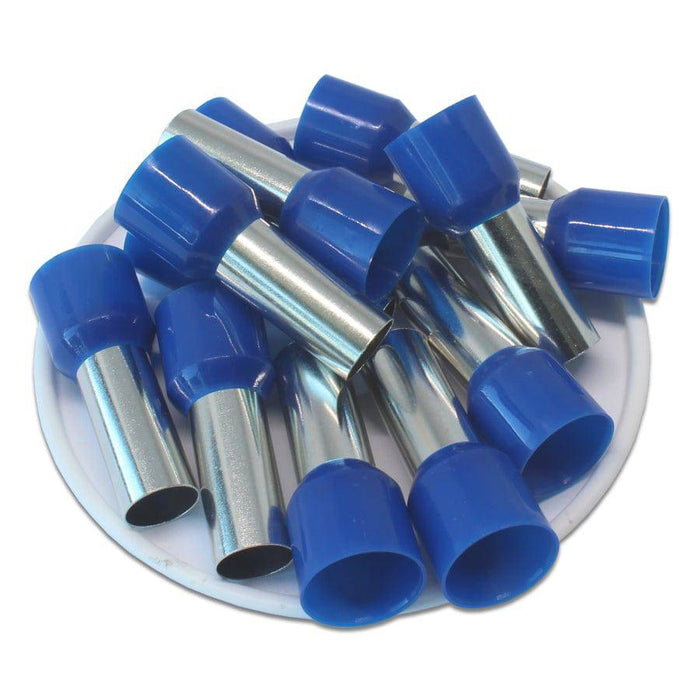

AD420012 - 1 AWG (Small Diameter) Insulated Wire Ferrules, 12mm Pin, Blue, 50 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:

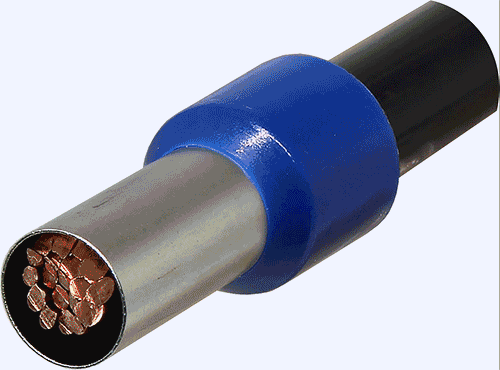

| Wire Size: | True 1 AWG |
| Color: | Blue |
| L1: | 28mm (1.10") |

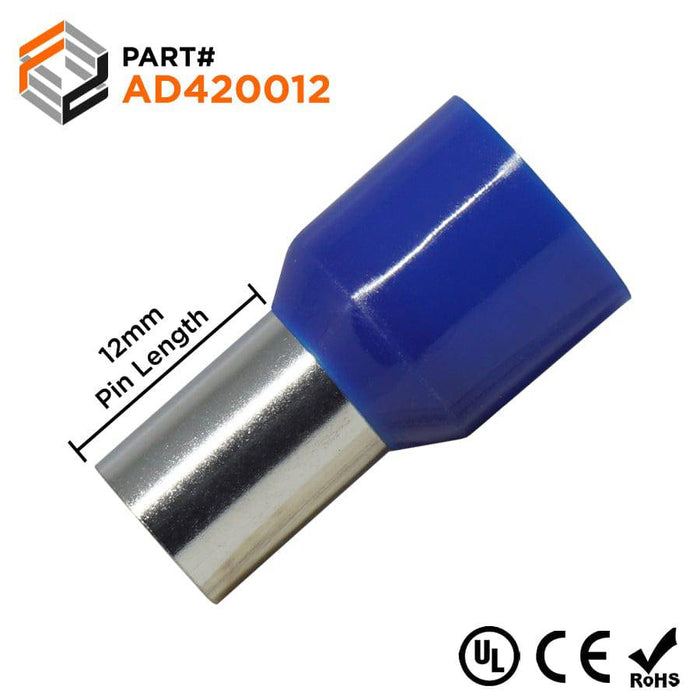

| L2: | 12mm (0.47") |
| D: | 9.2mm (0.36") |
| D1: | 8.2mm (0.32") |
| D2: | 12.3mm (0.48") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 195A |
Product Drawing:
Cross References
Cross Reference Parts:
None
