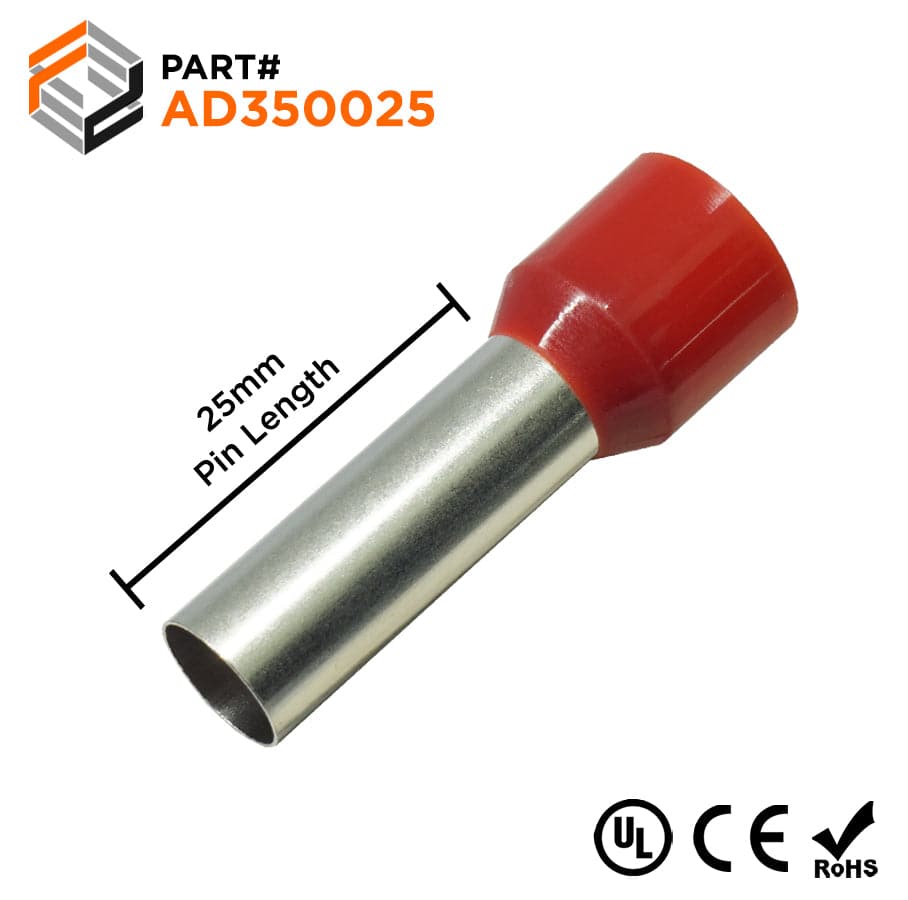

AD350025 - 2 AWG (25mm Pin) Insulated Ferrules - Red
Original price
$15.90
-
Original price
$15.90
Original price
$15.90
$15.90
-
$15.90
Current price
$15.90
SKU AD350025
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSD01904
Altech Corp: 2860.0 FID0225
American Electrical: 11253350
Greenlee: 479/25/16
McMaster-Carr: 7950K149
Panduit: FSF86-25-L
Phoenix Contact: 3200713
Thomas Betts: F2052
Tyco AMP: 3-966 067-3
Weidmuller: 9019330000
ZF: V3AE0069
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2 AWG |
| Color: | Red |
| L1: | 39.0mm (1.53") |
| L2: | 25.0mm (.984") |
| D: | 8.7mm (0.34") |
| D1: | 8.3mm (0.33") |
| D2: | 12.7mm (0.50") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 170A |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSD01904
Altech Corp: 2860.0 FID0225
American Electrical: 11253350
Greenlee: 479/25/16
McMaster-Carr: 7950K149
Panduit: FSF86-25-L
Phoenix Contact: 3200713
Thomas Betts: F2052
Tyco AMP: 3-966 067-3
Weidmuller: 9019330000
ZF: V3AE0069
Documents
Click to view product spec sheet:
