![AD1200027 - 4/0 AWG (27mm Pin) Insulated Ferrules - Blue - Ferrules Direct](http://www.ferrulesdirect.com/cdn/shop/products/AD1200027A900X900_703x700.jpg?v=1706799596)

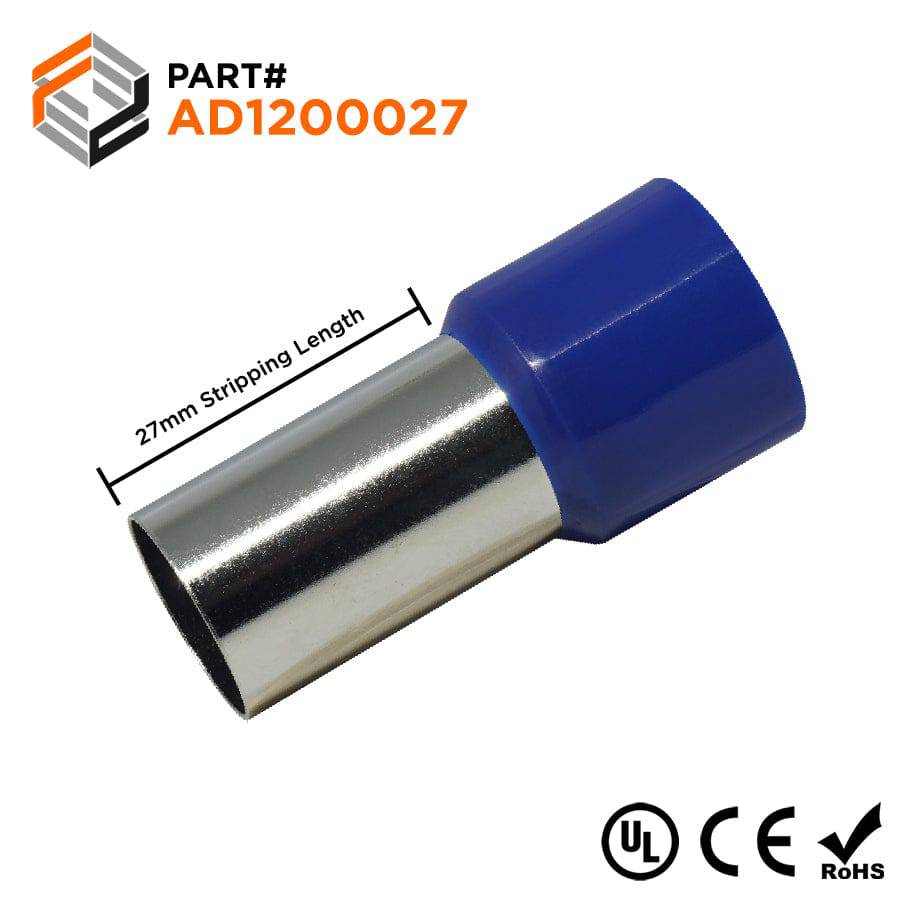

AD1200027 - 4/0 AWG (27mm Pin) Insulated Ferrules - Blue
Original price
$19.41
-
Original price
$19.41
Original price
$19.41
$19.41
-
$19.41
Current price
$19.41
SKU AD1200027
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
ABB: XUSD01921
Altech Corp: 2788.0
American Electrical: 112721200
Crimp Supply: 13A11024
McMaster-Carr: 7950K68
Phoenix Contact: 3201822
Tyco AMP: 4-966 292-1
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Pdf_aca7efa3-896e-4c4c-baef-80e5c51a67fb_100x100.png?v=1578685893)
Certifications:
UL Certification
Reach Certification
RoHS3 Certification
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 4/0 AWG |
Color: | Blue |
L1: | 47.6mm (1.87") |
L2: | 27.0mm (1.06") |
D: | 17.7mm (0.69") |
D1: | 16.7mm (0.65") |
D2: | 20.3mm (0.79") |
Material: | Tin-Plated Copper |
Max Electrical Rating: | 105°C (221°F) - 600 Volts |
Max Electrical Current: | 360A |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Technical Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/WireFerruleDrawing2_bca0162b-5cca-4380-8d04-0305c6ea4cb7_600x600.jpg?v=1578947147)
Cross References
Cross Reference Parts:ABB: XUSD01921
Altech Corp: 2788.0
American Electrical: 112721200
Crimp Supply: 13A11024
McMaster-Carr: 7950K68
Phoenix Contact: 3201822
Tyco AMP: 4-966 292-1
Documents
Click to view product spec sheet:![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Pdf_aca7efa3-896e-4c4c-baef-80e5c51a67fb_100x100.png?v=1578685893)
Certifications:
UL Certification
Reach Certification
RoHS3 Certification
