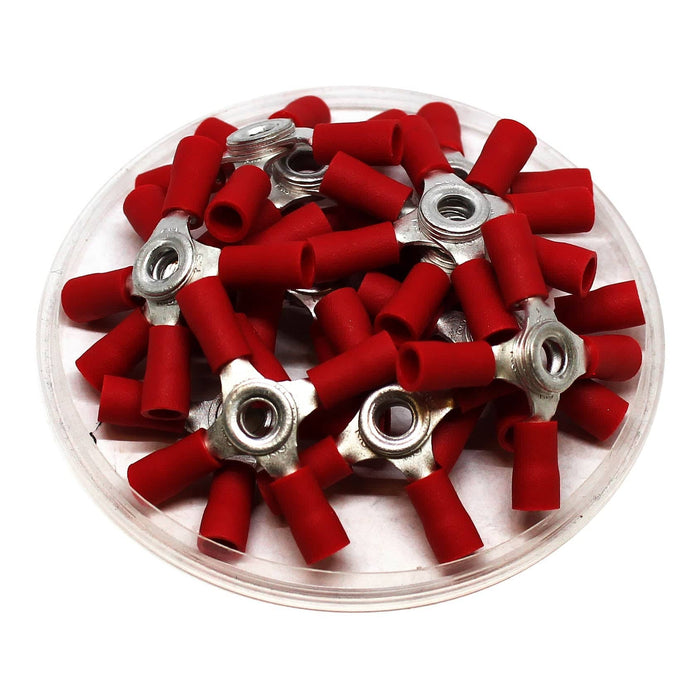

4WCV1 - Vinyl Insulated 4 Way Connectors - 22 AWG to 16 AWG
Original price
$5.61
-
Original price
$5.61
Original price
$5.61
$5.61
-
$5.61
Current price
$5.61
SKU 4WCV1
Availability:
in stock, ready to be shipped
Three and four (Y and X) wire connectors are the ideal solution when you need to splice multiple wires in your electrical system. Available in both vinyl insulation and non insulated.
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| L: | 1.34" (34.0mm) |
| D: | 0.16" (4.0mm) |
| E: | 0.39" (10.0mm) |
| D1: | 0.07" (1.7mm) |
| D2: | 0.16" (4.0mm) |
| Terminal Material: | Tin-Plated Copper |
| Insualtion Material: | Vinyl |
| Stud Size: | #8 Stud |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
