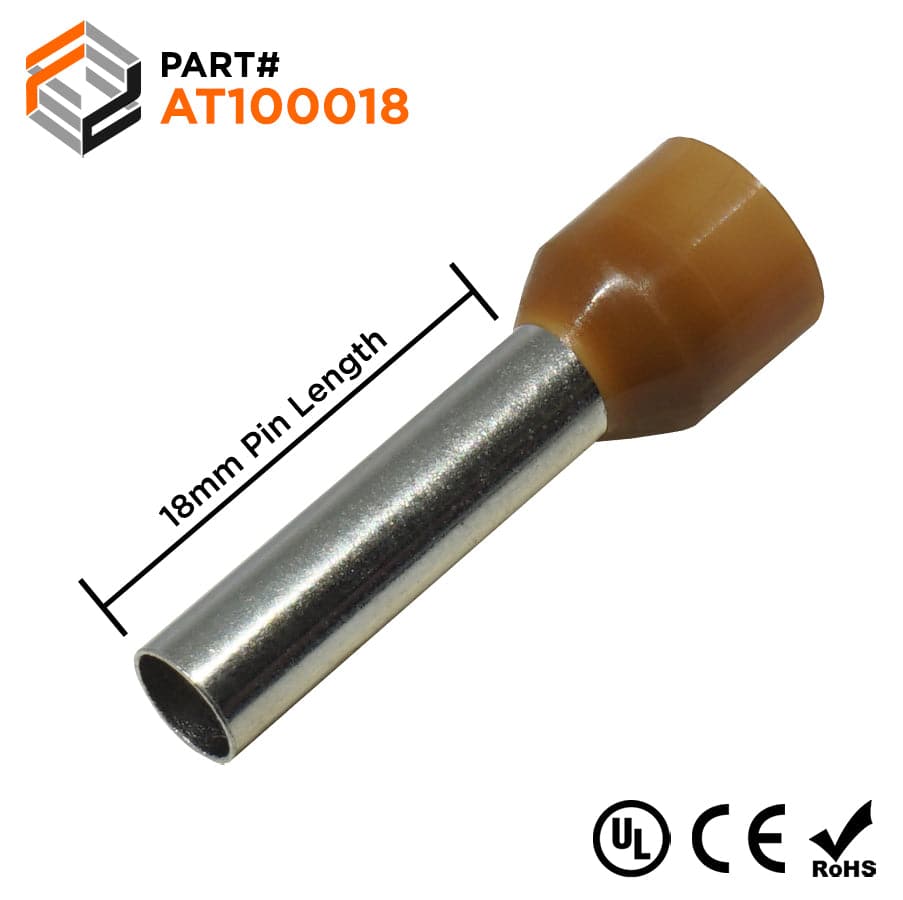

AT100018 - 8 AWG (18mm Pin) Insulated Ferrules - Brown
Precio original
$6.74
-
Precio original
$6.74
Precio original
$6.74
$6.74
-
$6.74
Precio actual
$6.74
SKU AT100018
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUS001886
American Electrical: 11183100
Greenlee: 176/18
Panduit: FSF83-18-C
Phoenix Contact: 3200137
Tyco AMP: 3-966 292-0
Weidmuller: 9021160000
ZF: V3AE0554
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 8 AWG |
| Color: | Brown |
| Material: | Tin-Plated Copper |
| L1: | 28mm (1.10") |
| L2: | 18mm (0.71") |
| D: | 4.9mm (0.19") |
| D1: | 4.5mm (0.17") |
| D2: | 7.6mm (0.29") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 70A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUS001886
American Electrical: 11183100
Greenlee: 176/18
Panduit: FSF83-18-C
Phoenix Contact: 3200137
Tyco AMP: 3-966 292-0
Weidmuller: 9021160000
ZF: V3AE0554
Documents
Click to view product spec sheet:
