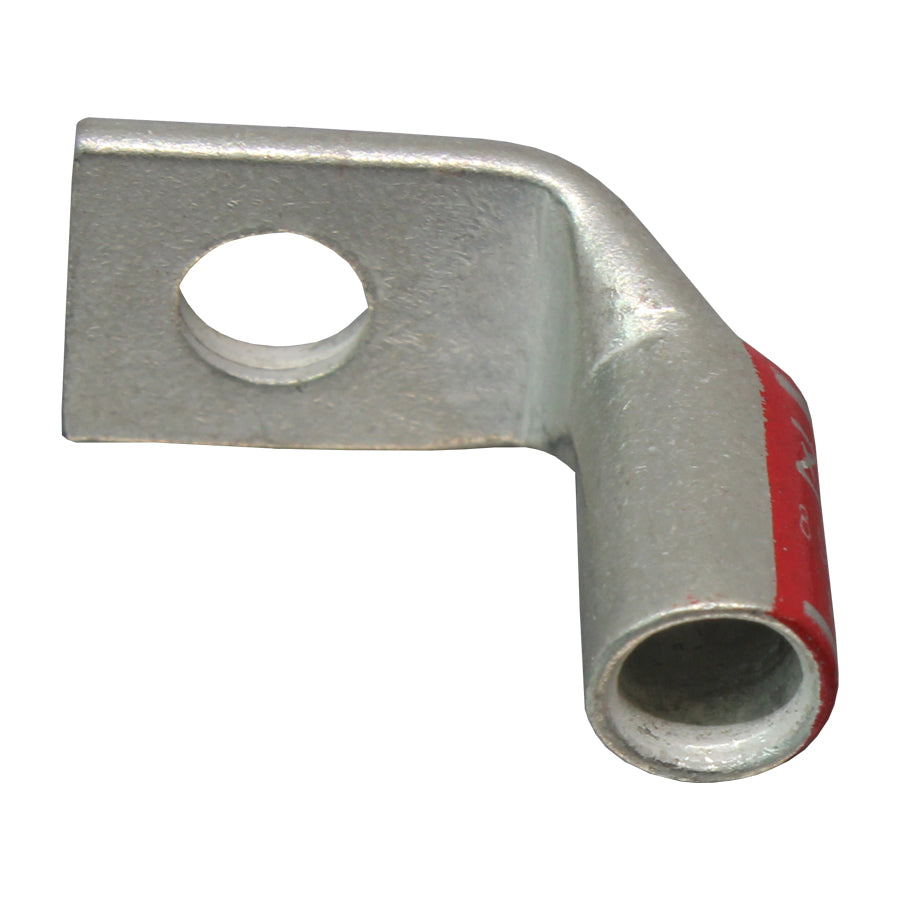

SBF810 - 90 Degree Short Barrel Compression Lug - 8 AWG - #10 Stud
Original price
$0.65
-
Original price
$0.65
Original price
$0.65
$0.65
-
$0.65
Current price
$0.65
SKU SBF810
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 8 AWG |
| Color: | Red |
| C: | 4.8mm (0.19") |
| E: | 5.6mm (0.22") |
| D: | 11.2mm (0.44") |
| G: | 6.4mm (0.25") |
| B: | 12.7mm (0.50") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #10 |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Maximum Ampere Rating: | 50 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
