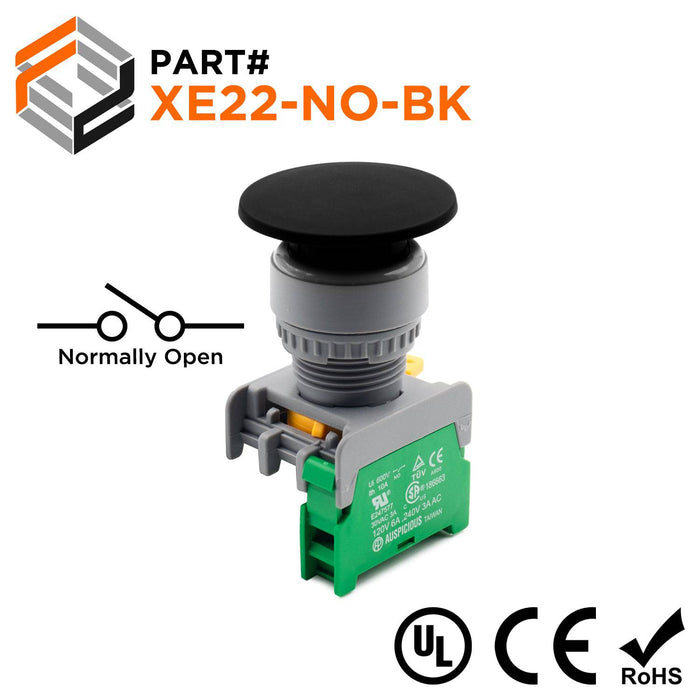

22mm Push Button - (NO) - 40mm Mushroom Head - Black - XE22-NO-BK
Precio original
$3.90
-
Precio original
$3.90
Precio original
$3.90
$3.90
-
$3.90
Precio actual
$3.90
SKU XE22-NO-BK
Disponibilidad:
en stock, listo para ser enviado
A push button switch consists of a simple electric switch mechanism which controls some aspect of a machine or process.
Dimensions & Features:
None
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Youtube_Logo_100x100.png?v=1578686161)
Dimensions & Features:
Type: |
40mm Mushroom Head |
Mounting Hole Size: | 22mm |
Color: | Black |
Type of Contact: |
(NO) Normally Open |
Number of Contacts: | 1 |
Voltage Rating: |
110V, 6AMP - 120V, 6AMP - 240v, 3AMP |
Short Circuit Current: |
1000A |
Rated Insulation Voltage (Ui): |
600v |
Thermal Current (Ith): |
10A, 50/60Hz |
Mechanical Life (Block): |
1 Million Operations |
Mechanical Life (Actuator): | 1 Million Operations |
Enclosure Material: | Reinforced Thermoplastic |
Contact Material: | Silver |
Contact Resistance: |
50mΩ max (initial) |
Protection Degree: | IP65 |
Ambient Temperature: |
-4°F to 140°F [-20°C to 60°C] |
Operating Temperature: | -25°C to 70°C |
Approvals: |
UL, CSA, CE, TUV |
UL File #: |
E247577 |
CSA #: |
1689803 |
RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
