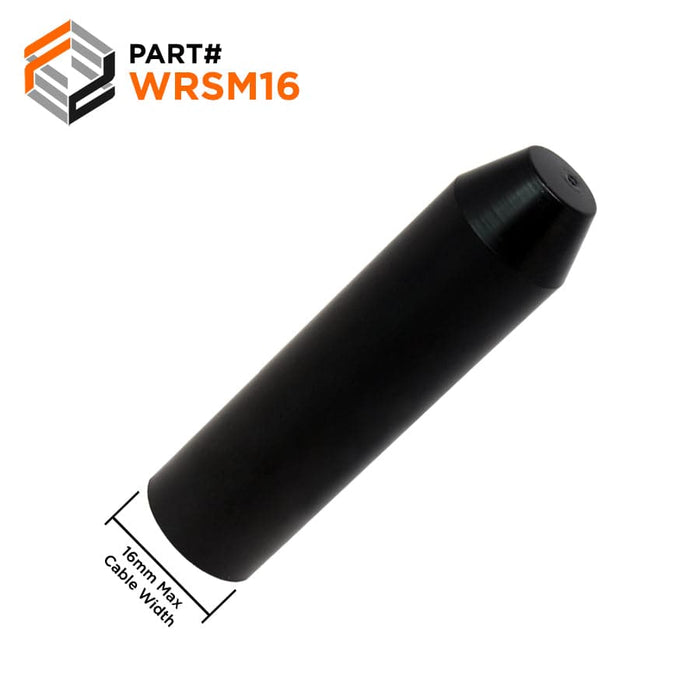

WRSM16 - Heat Shrinkable End Cap - 16/8mm (.63/.32")
Precio original
$1.76
-
Precio original
$1.76
Precio original
$1.76
$1.76
-
$1.76
Precio actual
$1.76
SKU WRSM16
Disponibilidad:
en stock, listo para ser enviado
Heat shrinkable end caps are used for a variety of applications. Such as:
Sealing off exposed wire ends, feed-through terminal insulation, and protection from the elements.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Size: | 16/8mm (0.63"/0.32") |
| Length (L): | 74mm (2.91") |
| Diameter (D) (As Supplied): | 16mm (0.63") |
| Diameter (W) (After Shrink): | 8mm (0.32") |
| Material: | Flexible Polyolefin |
| Operating Temperature: | -49oF to 257oF (-45oC to 125oC) |
| Non Corrosive: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
