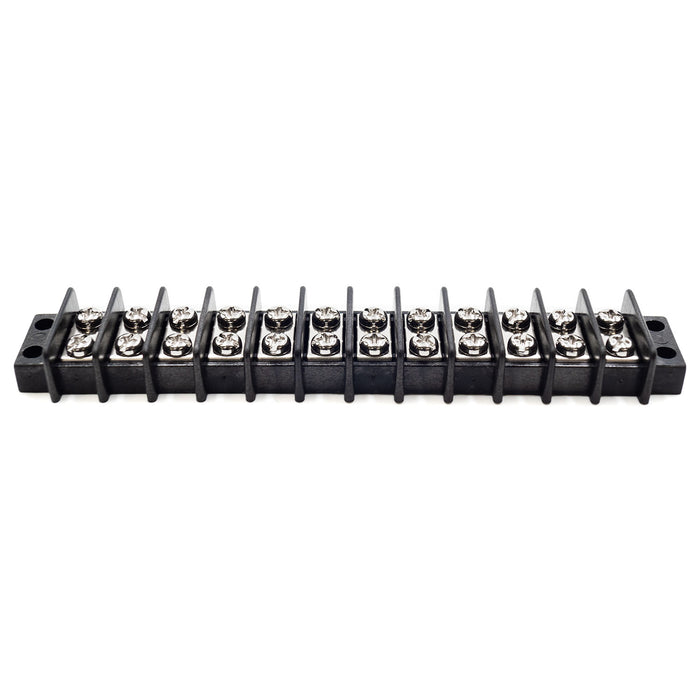

Barrier Strip Terminal Block, Terminal Strip, 12 Pole, Double Row, 20A, 300V, UL Approved - TB18-12P
Precio original
$6.24
-
Precio original
$6.24
Precio original
$6.24
$6.24
-
$6.24
Precio actual
$6.24
SKU TB18-12P
Disponibilidad:
en stock, listo para ser enviado
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Number of Poles: | 12 Poles |
| Pitch: | 11.1mm (0.44") |
| A: | 144.5mm (5.69") |
| B: | 152.4mm (6.00") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 20AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
