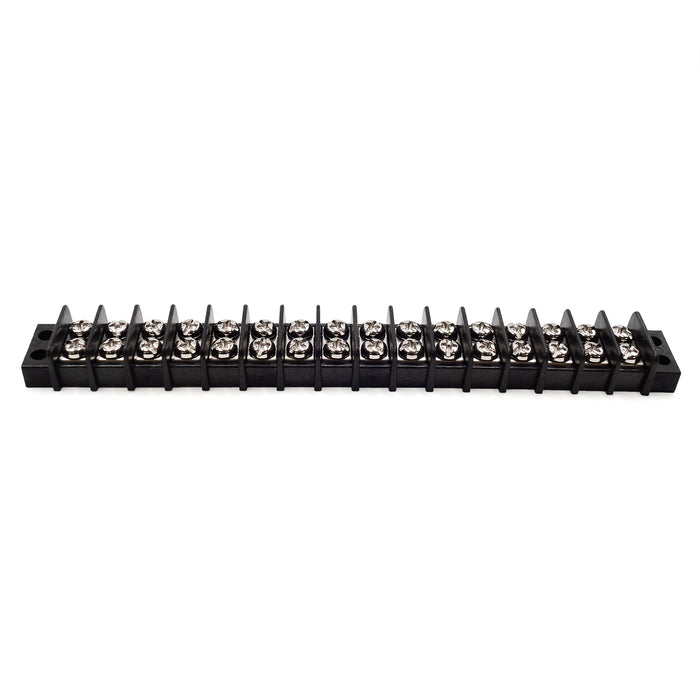

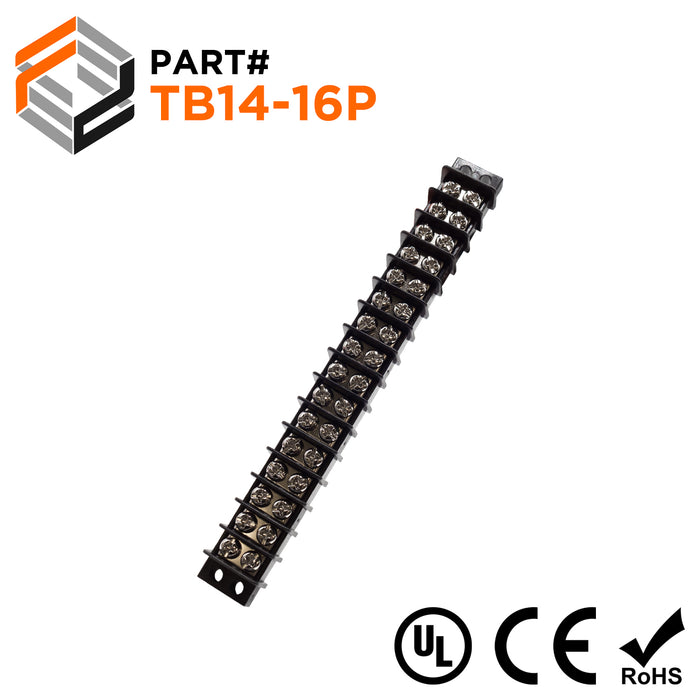

Barrier Strip Terminal Block, Terminal Strip, 16 Pole, Double Row, 15A, 300V, UL Approved - TB14-16P
Precio original
$7.68
-
Precio original
$7.68
Precio original
$7.68
$7.68
-
$7.68
Precio actual
$7.68
SKU TB14-16P
Disponibilidad:
en stock, listo para ser enviado
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:

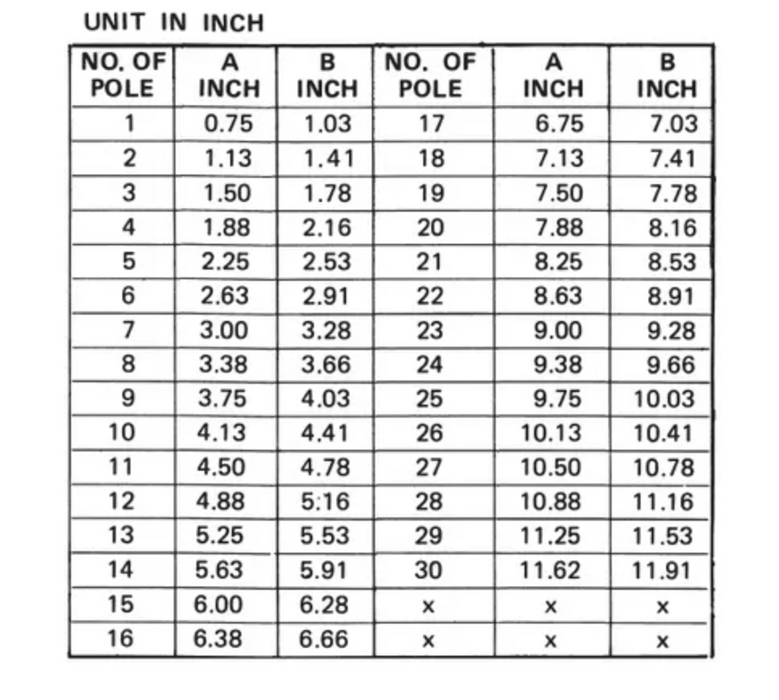

Product Drawing:
Dimensions & Features:
| Number of Poles: | 16 Poles |
| Pitch: | 9.5mm (0.38") |
| A: | 162.1mm (6.38") |
| B: | 169.2mm (6.66") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 15AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
