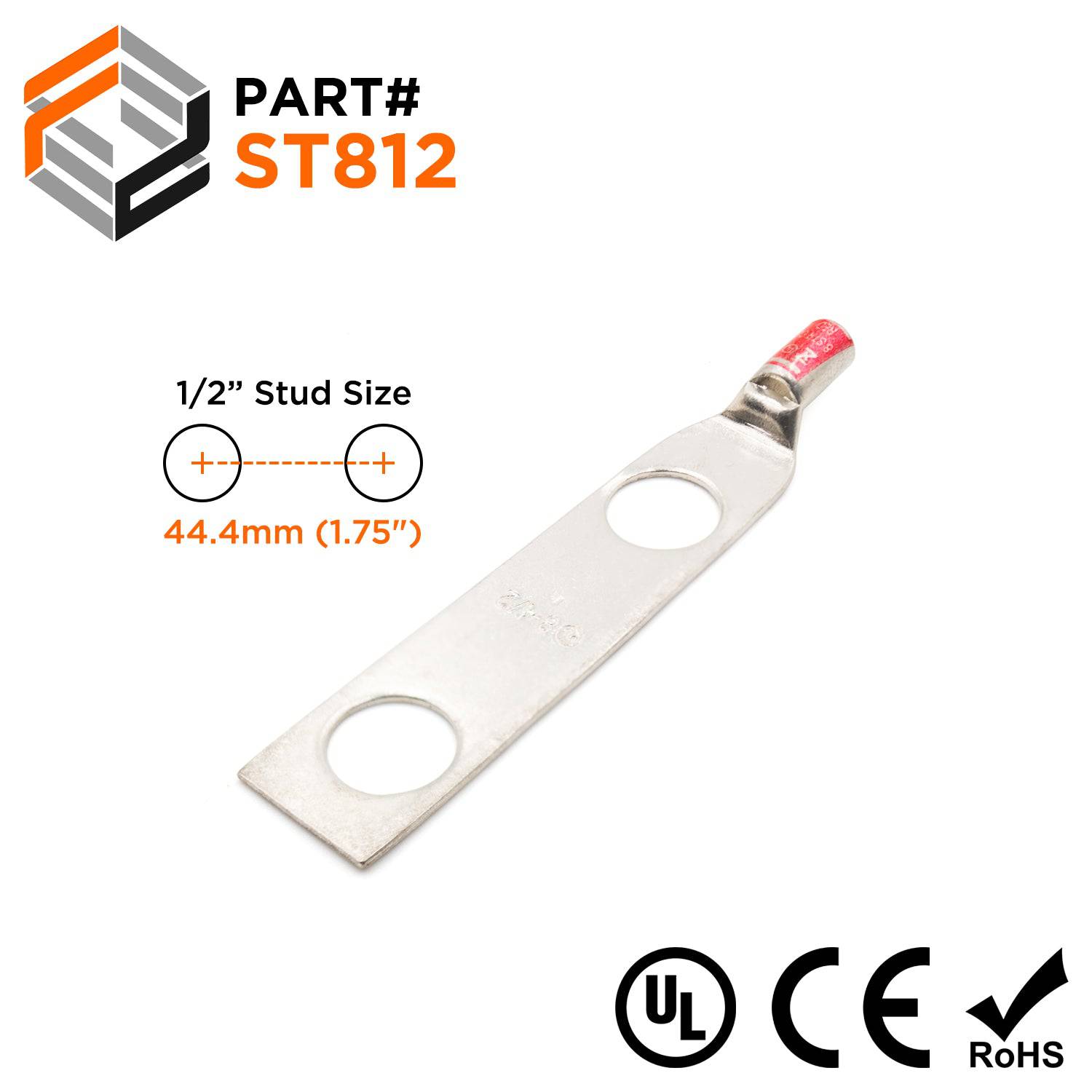

ST812 - 8 AWG Compression Lug - 1/2" Stud Size
Precio original
$1.35
-
Precio original
$1.35
Precio original
$1.35
$1.35
-
$1.35
Precio actual
$1.35
SKU ST812
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Red |
| L: | 89mm (3.51") |
| L1: | 73.2mm (2.88") |
| L2: | 44.4mm (1.75") |
| D: | 17.8mm (0.70") |
| D1: | 7.11mm (0.28") |
| D2: | 4.83mm (0.19") |
| B: | 12.7mm (0.50") |
| E: | 12.95mm (0.51") |
| F: | 1.19mm (0.05") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
