SNYBL1-3.7 - Nylon Insulated Spade Terminals - 22-16 AWG
Precio original
$9.00
-
Precio original
$9.00
Precio original
$9.00
$9.00
-
$9.00
Precio actual
$9.00
SKU SNYBL1-37
Disponibilidad:
en stock, listo para ser enviado

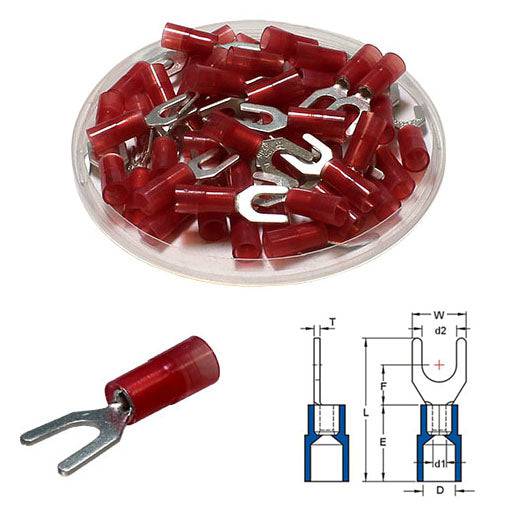

Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
Cembre: BKY-U3.5
McMaster-Carr: 69145K321
Tyco AMP: 34080
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Stud Size: | #6 |
| T: | 0.7mm (0.03") |
| L: | 22.0mm (0.87") |
| F: | 6.5mm (0.26") |
| E: | 11.0mm (0.43") |
| W: | 6.4mm (0.25") |
| D: | 4.5mm (0.18") |
| D1: | 1.7mm (0.06") |
| D2: | 3.7mm (0.15") |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105°C |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Cembre: BKY-U3.5
McMaster-Carr: 69145K321
Tyco AMP: 34080
