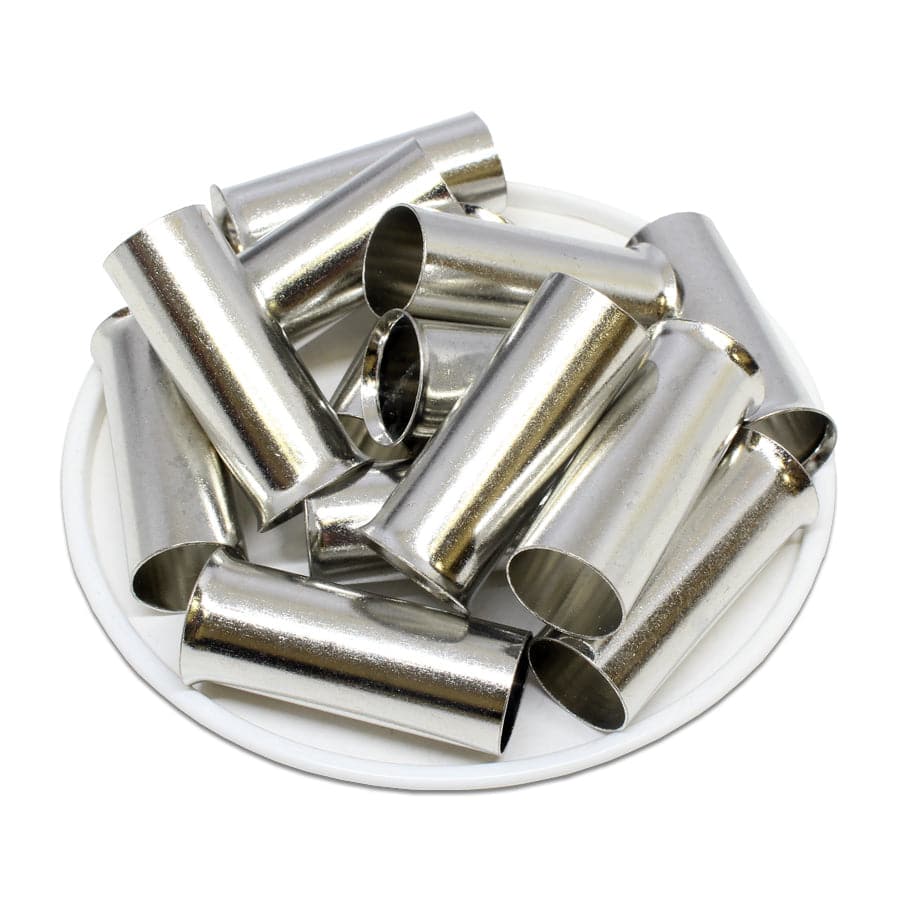

SF530020 - True 1/0 AWG (20mm Pin) Non Insulated Ferrules

Precio original $0.00 - Precio original $17.39
Precio original
$17.39
$0.00 - $17.39
Precio actual $17.39
SKU SF530020
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Piece Quantity: 50 Pieces
true
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: True 1/0 AWG
L1: 20mm (0.79")
D: 11.1mm (0.44")
D1: 10.5mm (0.41")
D2: 13mm (0.51")
Material: Tin Plated Copper
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: Up to 2000V
Max Electrical Current: 230A

Product Drawing:

Cross References

Cross Reference Parts:
None
