SD05008-CL - Insulated Wire Ferrule Strips - 22 AWG
Precio original
$12.99
-
Precio original
$12.99
Precio original
$12.99
$12.99
-
$12.99
Precio actual
$12.99
| /

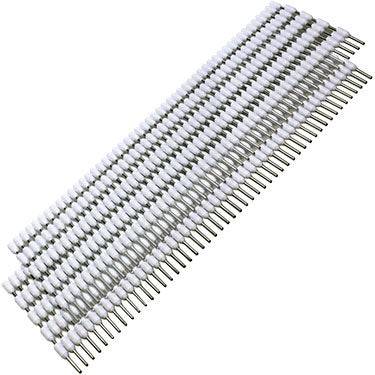

Strips of Insulated Wire
Ferrules - SD05008-CL |
-
-
|
-
L1 |
-
L2 |
-
D |
-
D1 |
-
D2 |
-
14.0mm (.551")
|
-
8.0mm (.315")
|
-
1.3mm (.051")
|
-
1.0mm (.039")
|
-
2.6mm (.102")
|
-
Pack contains 10 strips of 40 pieces for a total of 400 pieces per pack
Material: Copper,
electrolytically tin plated
- UL
Approved (*)
- CE
Certified
- RoHS
Compliant
- Maximum
Electrical Rating: 105°C (302°F) - 600 Volts
- Maximum
Electrical Current: 12A
|
-
-
Insulated or
Non-Insulated Wiring Ferrules' Suitable Use
- Any
manufacturer's ferrules are suitable for use provided they are:
|
-
A. For use
in factory wiring only, power or control circuits.
-
B.
- Crimped
with an appropriate tool as recommended by the ferrule manufacturer
before terminating in terminal blocks, wire connectors, or end-product
terminals (such as starters, etc.).
- C.
- Sized in
diameter appropriate for the number of wires, wire type
(stranded/solid) and wire size as recommended by the ferrule
manufacturer such that the crimp results in a reliable connection.
-
- D.
- Constructed
such that the length of the wires held captive by the ferrules are
trimmed, if necessary, and that there are no excess live parts, which
can result in the reduction of electrical spacings.
|
|
- (*)
UL Bulletin dated January 17, 2013 titled "Use
of Wiring Ferrules and UPS Equipment in Industrial Control Panels".
|
|
-
-
-
-
-
-
-
-
