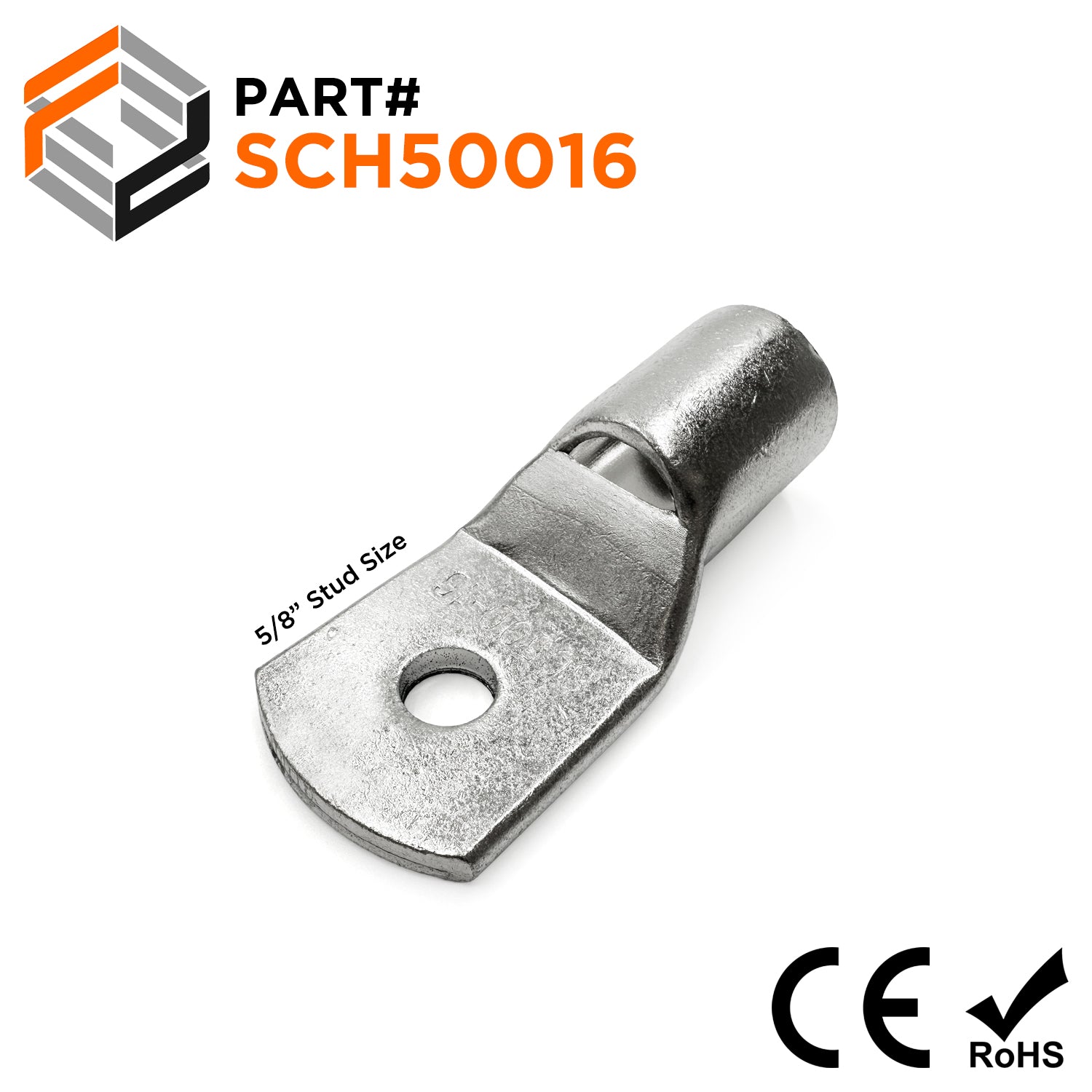

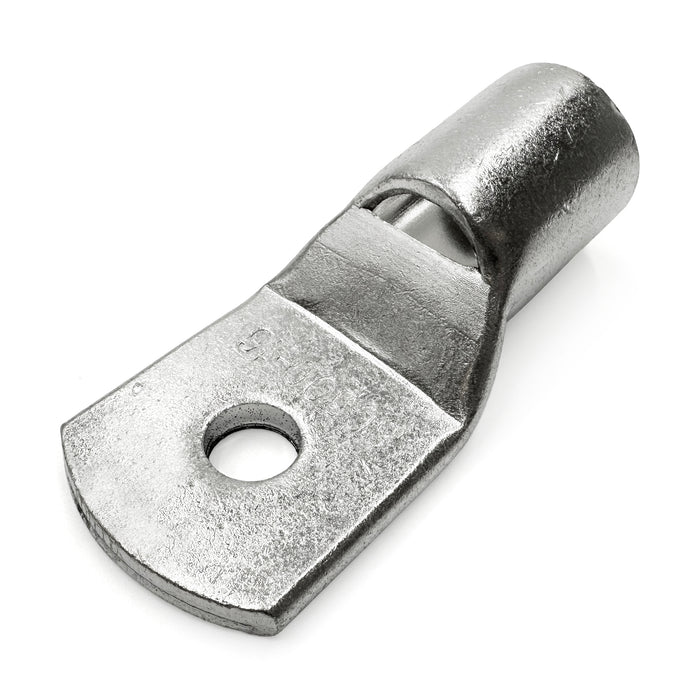

SCH50016 - Non Insulated Tubular Ring Lugs - 986MCM
Precio original
$30.64
-
Precio original
$30.64
Precio original
$30.64
$30.64
-
$30.64
Precio actual
$30.64
SKU SCH50016
Disponibilidad:
Stock bajo
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 986MCM |
| F: | 50.0mm (1.97") |
| W: | 55.0mm (2.17") |
| L: | 123.0mm (4.84") |
| D: | 38.0mm (1.50") |
| D1: | 30.0mm (1.18") |
| D2: | 17.0mm (0.67") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 5/8" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 545 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
