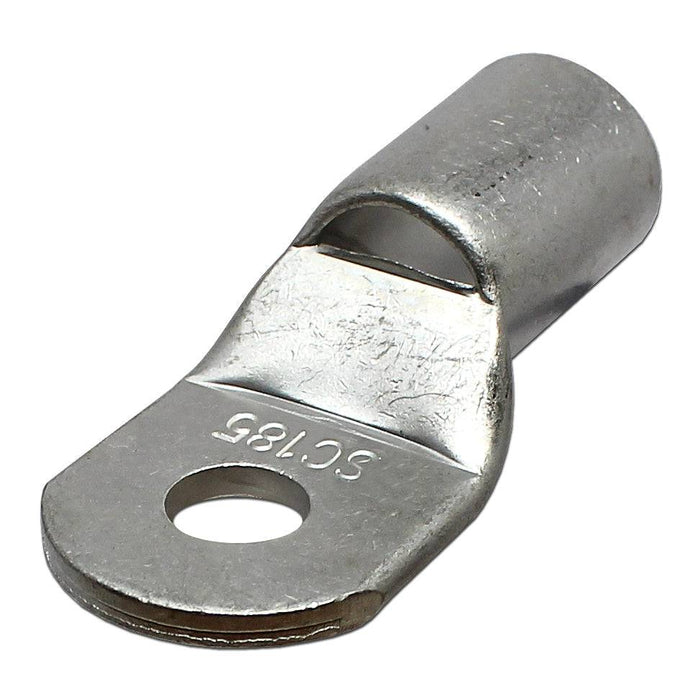

SCH18512 - Non Insulated Tubular Ring Lugs - 365MCM
Precio original
$40.38
-
Precio original
$40.38
Precio original
$40.38
$40.38
-
$40.38
Precio actual
$40.38
SKU SCH18512
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 365MCM |
| F: | 32.0mm (1.26") |
| W: | 34.5mm (1.36") |
| L: | 77mm (3.03") |
| D: | 23.5mm (0.93") |
| D1: | 19.5mm (0.77") |
| D2: | 13.0mm (0.51") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 1/2" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 310 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
