SCH15012 - Non Insulated Tubular Ring Lugs - 250MCM
Precio original
$20.95
-
Precio original
$20.95
Precio original
$20.95
$20.95
-
$20.95
Precio actual
$20.95
SKU SCH15012
Disponibilidad:
en stock, listo para ser enviado

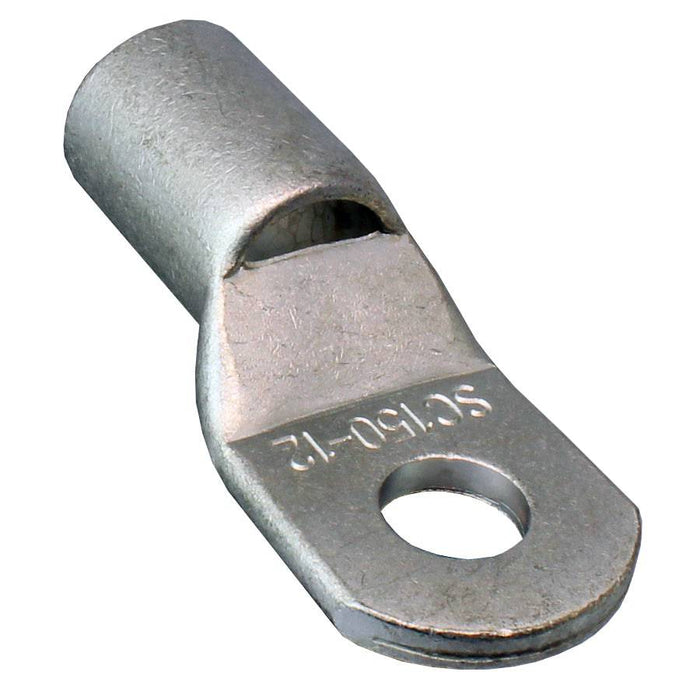

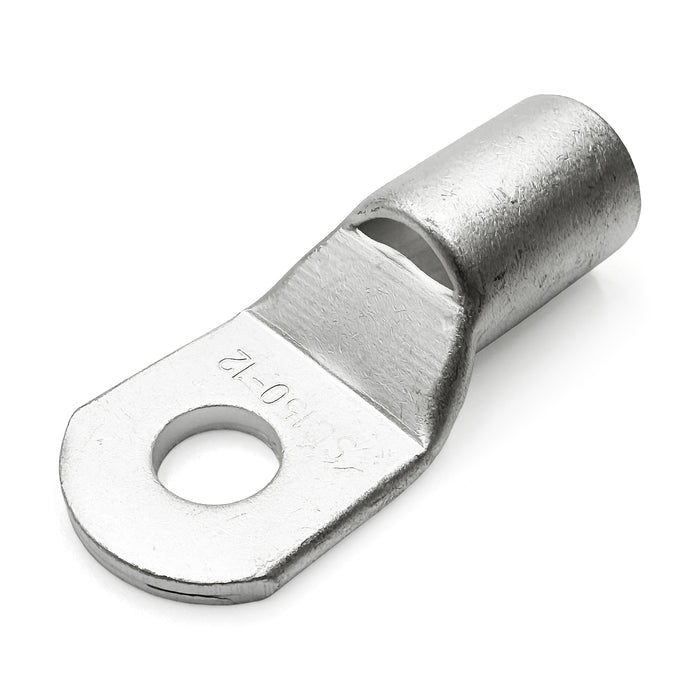

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 250MCM |
| F: | 29.0mm (1.14") |
| W: | 30.5mm (1.20") |
| L: | 70.5 (2.78") |
| D: | 21.0mm (0.83") |
| D1: | 16.7mm (0.66") |
| D2: | 13.0mm (0.51") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |

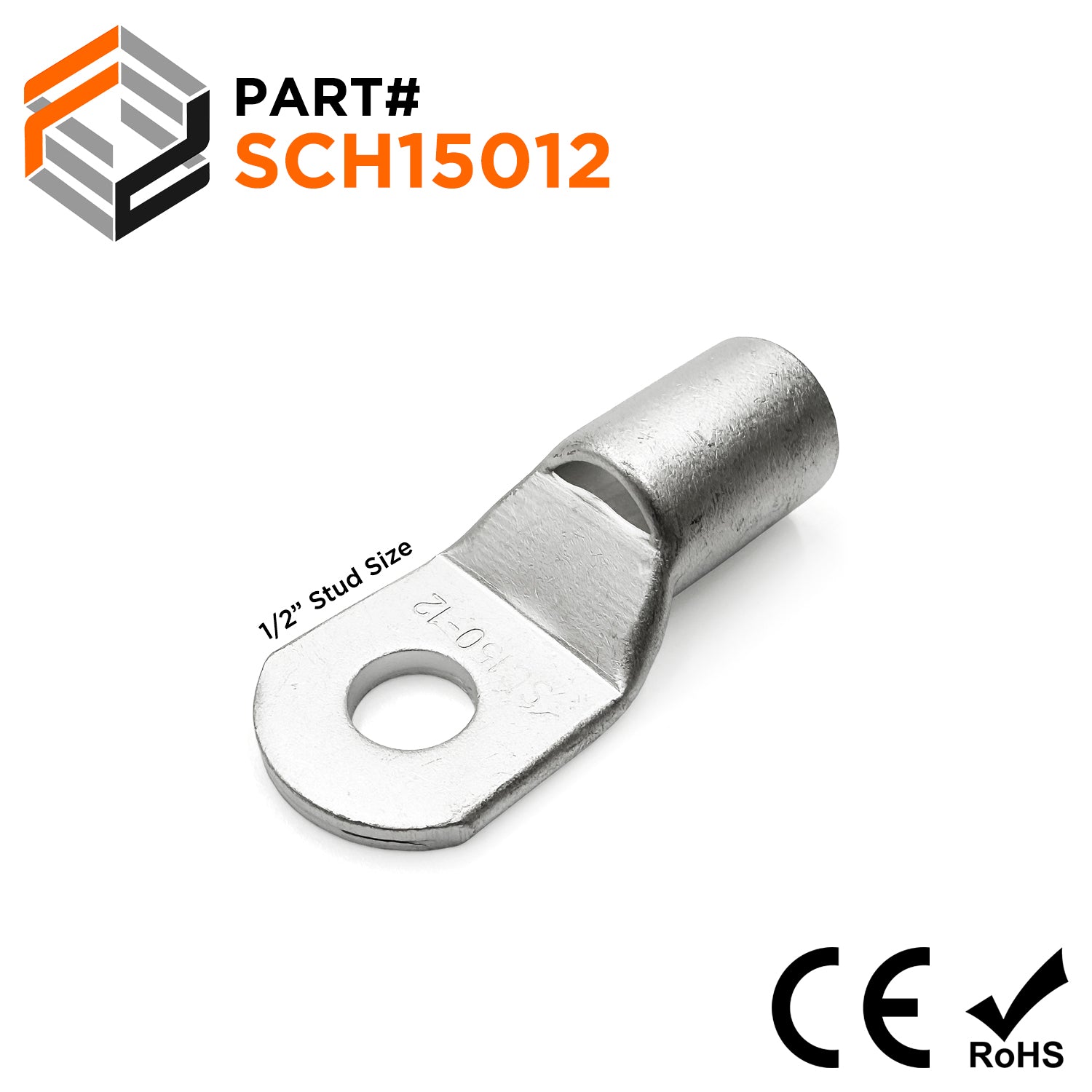

| Stud Size: | 1/2" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 255 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
