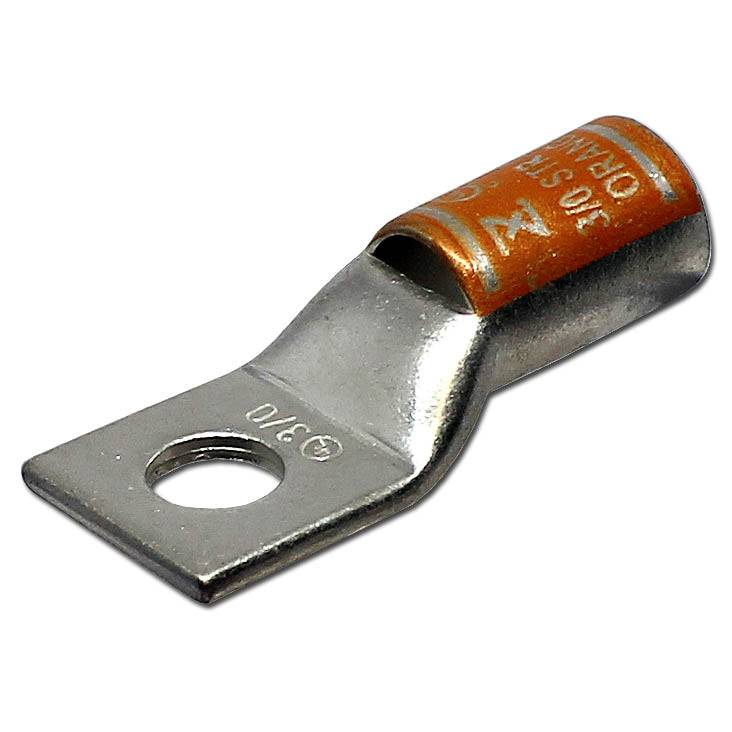

SB3014 - 3/0 AWG Compression Lug - 1/4" Stud Size
Precio original
$2.61
-
Precio original
$2.61
Precio original
$2.61
$2.61
-
$2.61
Precio actual
$2.61
SKU SB3014
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 3/0 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Orange |
| L: | 51.7mm (2.04") |
| L1: | 18.4mm (0.70") |
| D: | 23.0mm (0.90") |
| D1: | 15.7mm (0.60") |
| D2: | 13.0mm (0.50") |
| B: | 24.4mm (0.96") |
| E: | 7.1mm (0.30") |
| F: | 2.7mm (0.10") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Maximum Amp Rating: | 310A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
