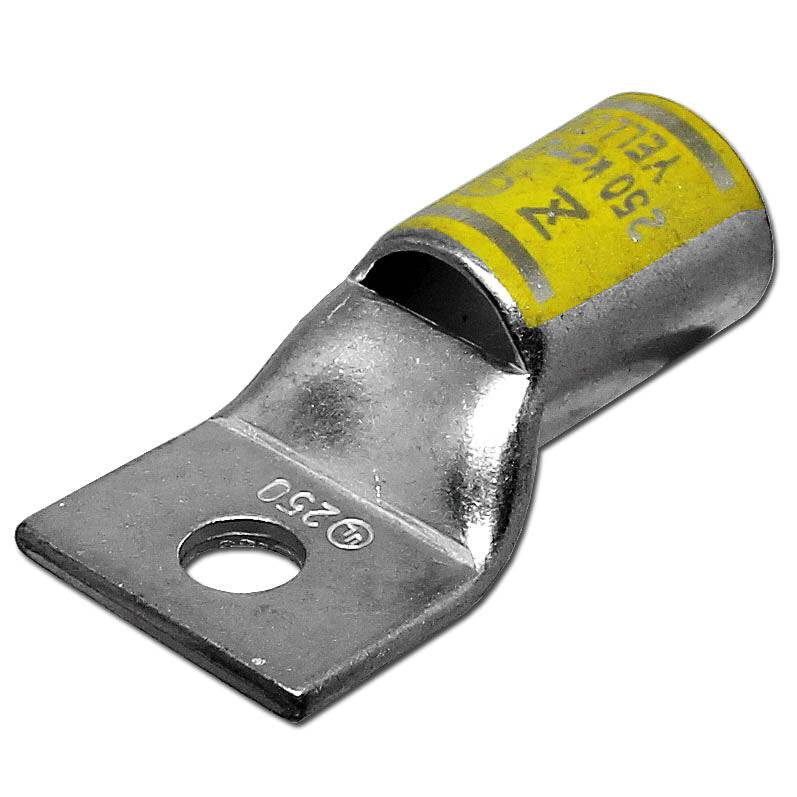

SB25058 - 250MCM Compression Lug - 5/8" Stud Size
Precio original
$4.32
-
Precio original
$4.32
Precio original
$4.32
$4.32
-
$4.32
Precio actual
$4.32
SKU SB25058
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 250MCM |
| Stud Size: | 5/8" Stud |
| Color: | Yellow |
| L: | 68.6mm (2.70") |
| L1: | 31.8mm (1.45") |
| D: | 27.9mm (1.10") |
| D1: | 19.1mm (0.75") |
| D2: | 16mm (0.63") |
| B: | 27.9mm (1.10") |
| E: | 16.8mm (0.66") |
| F: | 3mm (0.12") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 405A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
