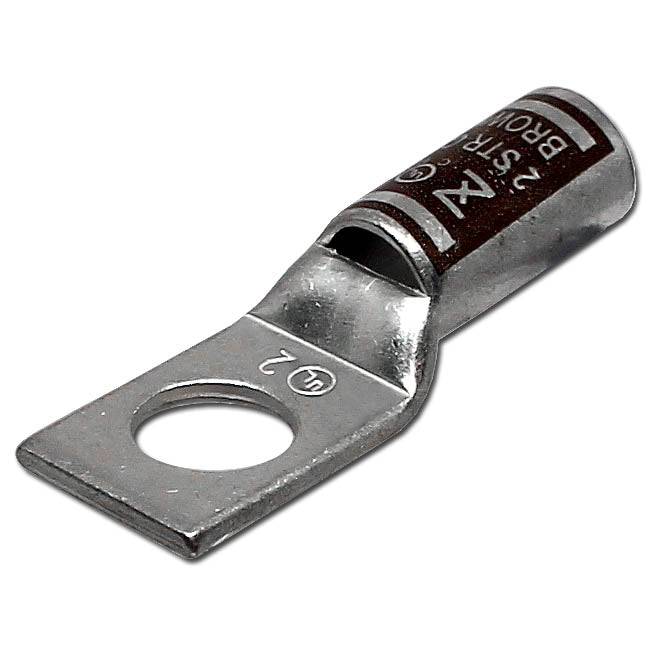

SB210 - 2 AWG Compression Lug - #10 Stud Size
Precio original
$1.13
-
Precio original
$1.13
Precio original
$1.13
$1.13
-
$1.13
Precio actual
$1.13
SKU SB210
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 2 AWG |
| Stud Size: | #10 Stud |
| Color: | Brown |
| L: | 40.1mm (1.6") |
| L1: | 15.2mm (0.59") |
| D: | 15.9mm (0.62") |
| D1: | 10.8mm (0.4") |
| D2: | 8.5mm (0.3") |
| B: | 20.3mm (0.8") |
| E: | 5.6mm (0.22") |
| F: | 2.2mm (0.09") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 170A |
Product Drawing:
Cross References
Cross Reference Parts:None
