20 AWG Insulated Wire Ferrules, 8mm Pin, White, 5000 pieces Reel/Spool - RW07508
INSULATED WIRE FERRULES - REEL/SPOOL
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
These ferrules come in a continuous reel of 5,000 pieces. The reel is made of corrugated cardboard with a plastic spindle that is universally accepted on a wide variety automatic crimping machines.
DIMENSIONS & FEATURES:
| Wire Size: | 20 AWG (0.75mm2) |
| Color: | White |
| Pin Length: | 8mm (0.31") |
| Material: | Tin Plated Copper & Polypropylene |
| L1: | 14mm (0.551") |
| L2: | 8.0mm (0.315") |
| D: | 1.57mm (0.062") |
| D1: | 1.2mm (0.047") |
| D2: | 2.8mm (0.110") |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Temperature Rating: | 221°F (105°C) |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 17 AMP |

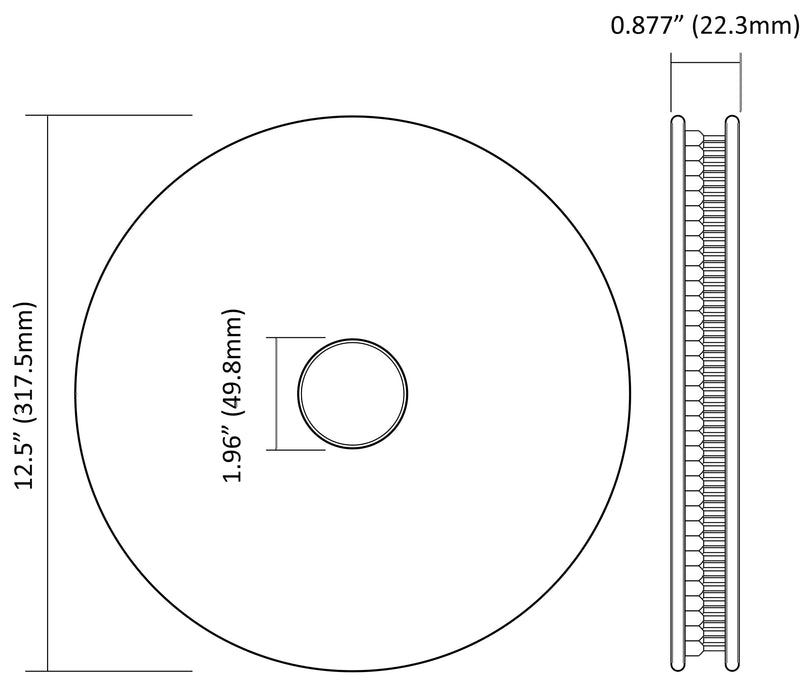

DRAWING:
Cross References
Cross Reference Parts:
ABB: XUSG01840
Altech Corp: 2202.0 FII1808W
ACI: 107671
American Electrical: 1182075
AUTOMATION DIRECT: BM-00502
Cembre: PKC 7508
Eclipse: 701-011
Greenlee: 170/W
Phoenix Contact: 3201110
SPC Technology: SPC4477 84N2011
Thomas Betts: F4001
Tyco AMP: 966 066-9
Weidmuller: 9025700000 046290000
ZF: V3AE0009 & V30AE000009
