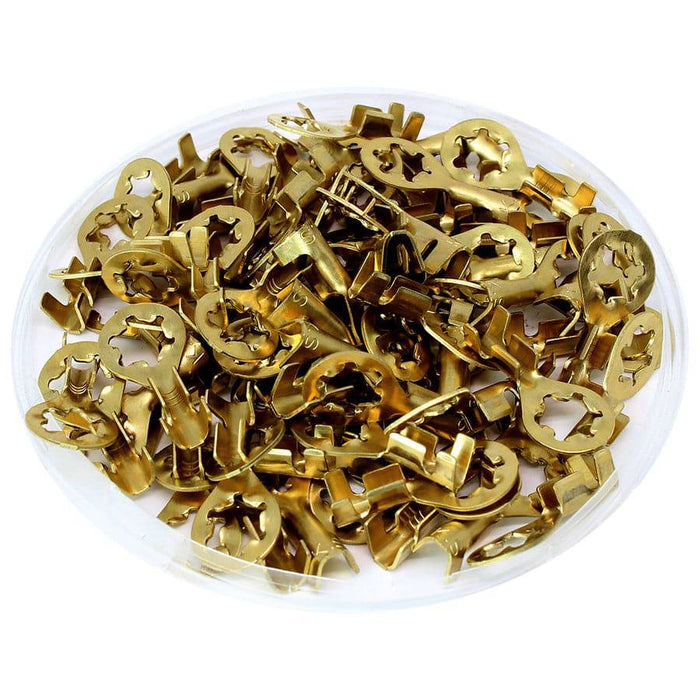

RM050-02B9L - Open Barrel Star Ring Terminal - 22-16 AWG - #10 Stud
Precio original
$12.60
-
Precio original
$12.60
Precio original
$12.60
$12.60
-
$12.60
Precio actual
$12.60
SKU RM050-02B9L
Disponibilidad:
en stock, listo para ser enviado
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #10 Stud |
| L: | 19.5mm (0.76") |
| F: | 5.0mm (0.19") |
| W: | 9.7mm (0.38") |
| T: | 0.5mm (0.02") |
| Material: | Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
