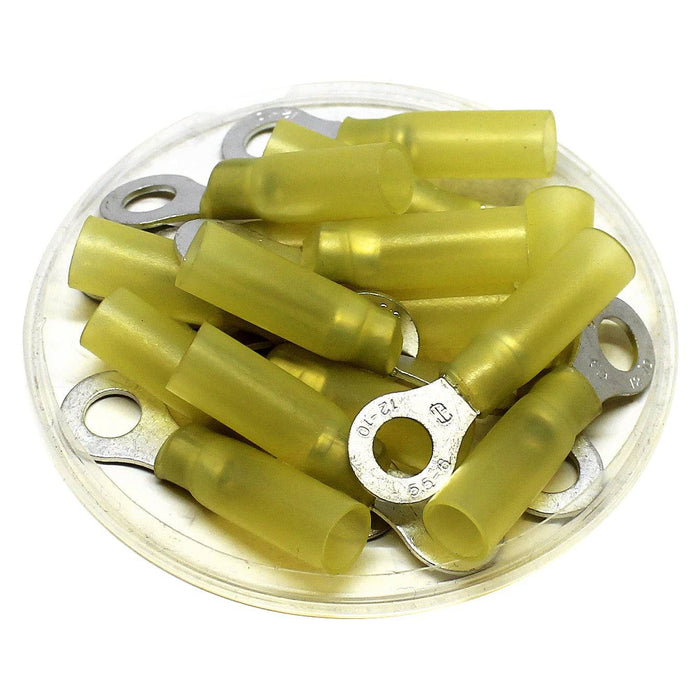

12 to 10 AWG Heat Shrink Ring Terminals, 1/4" Stud, Polyethylene, 25 Pieces - RHT5-6
Precio original
$2.60
-
Precio original
$2.60
Precio original
$2.60
$2.60
-
$2.60
Precio actual
$2.60
SKU RHT5-6
Disponibilidad:
en stock, listo para ser enviado
HEAT SHRINKABLE RING TERMINALS
Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
Wire Size: | 12 to 10 AWG |
Stud Size: | 1/4" Stud |
Color: | Yellow |
L: | 37.7mm (1.48") |
D2: |
6.4mm (0.25") |
W: | 12mm (0.47") |
Material: | Tin Plated Copper |
Insulation: | Polyethylene |
Max Electrical Rating: | 600 Volts |
Temperature Rating: | -67°F to 221°F (-55°C to 105°C) |
CE Certified: | Yes |
RoHS Compliant: | Yes |
DRAWING:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/RHT_Drawing_500x500_Yellow_480x480.jpg?v=1602775241)
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Spec_Sheet_Coming_Soon_Graphic_a9a3d819-f863-4f21-a1d9-9e736ce43d28_100x100.jpg?v=1582128480)
