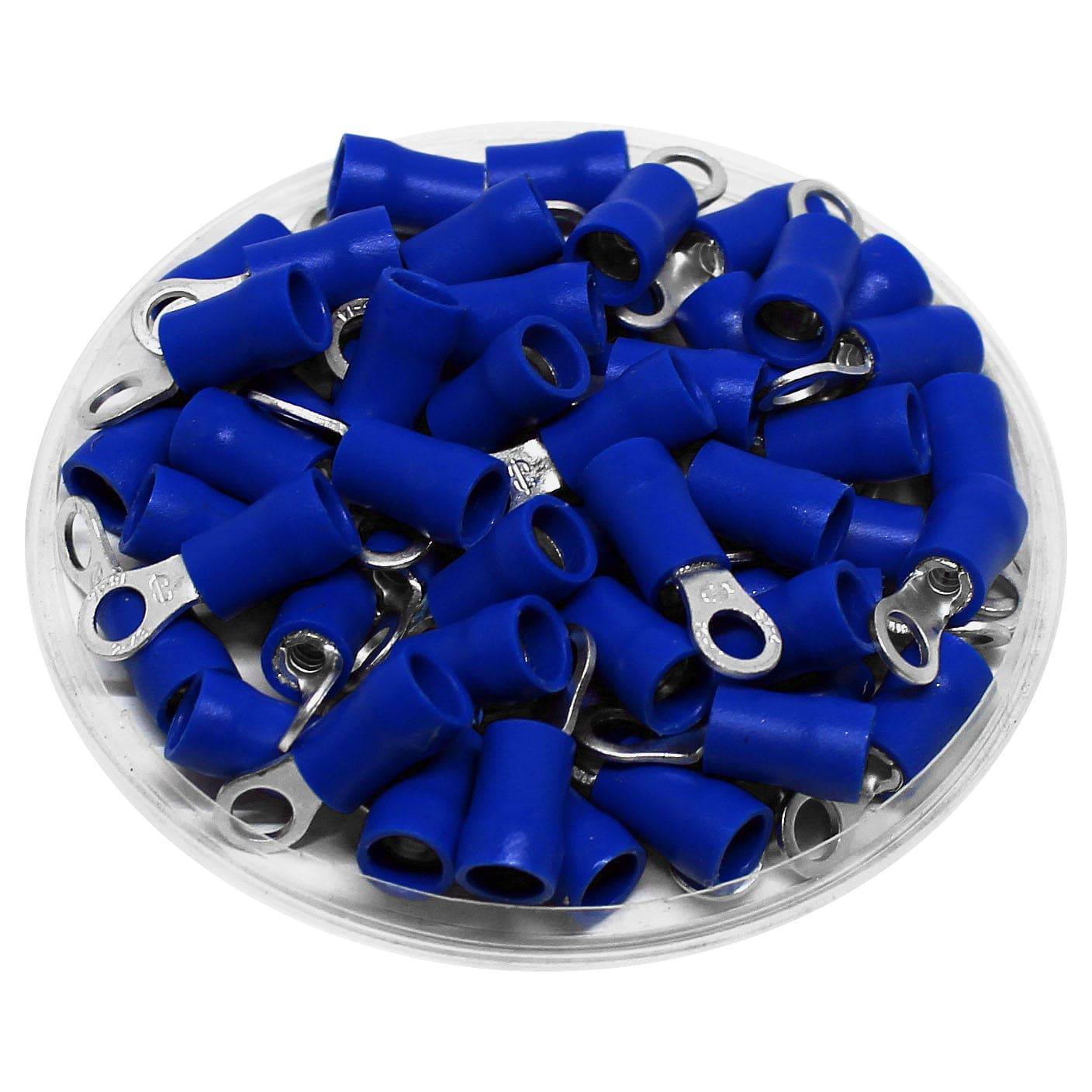

RDS2-3.2 - Double Crimp Vinyl Insulated Ring Terminals - 16-14 AWG - #5 Stud
Precio original
$9.94
-
Precio original
$9.94
Precio original
$9.94
$9.94
-
$9.94
Precio actual
$9.94
SKU RDS2-32
Disponibilidad:
en stock, listo para ser enviado
| PRODUCT DESCRIPTION | |||
|
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing potection to the crimp joint. Color coded according to industry standards. |
|||
| DIMENSIONS AND FEATURES | |||
| Wire Range: | 16-14 AWG | Color: | Blue |
| T: | 0.8mm (.03") | Terminal Material: | Tin-Plated Copper |
| L: | 18.9mm (0.74") | Insulation Material: | Vinyl |
| F: | 5.6mm (0.22") | Stud Size: | #6 |
| E: | 10.5mm (0.41") | Temperature Rating: | 1050C |
| W: | 5.5mm (0.22") | Voltage Rating: | 600 Volts |
| D: | 5mm (0.20") | UL Recognized: | Yes |
| D1: | 2.3mm (.09") | CE Certified: | Yes |
| D2: | 3.2mm (.13) | RoHS Compliant | Yes |
|
TECHNICAL DRAWING |
|||
 |
|||
Cross Reference Parts:
Click to view data sheet
