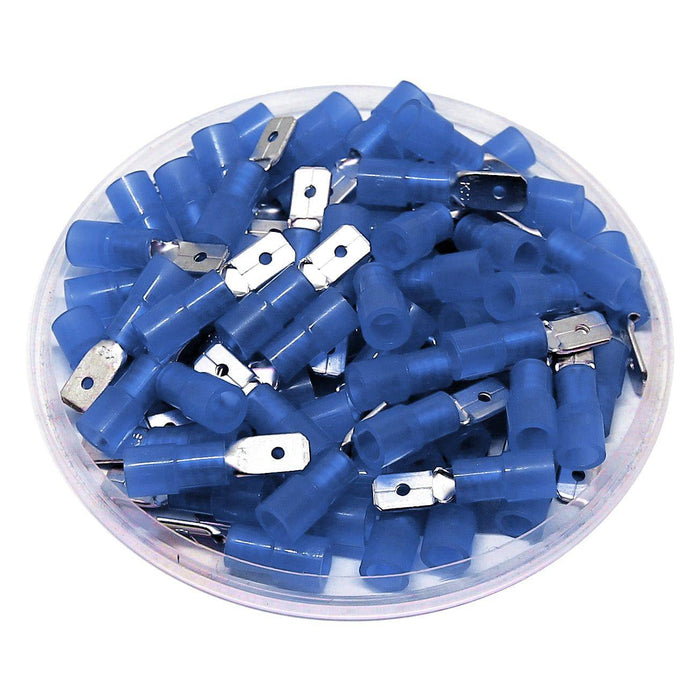

MDNYD2-187(5) - Nylon Insulated Male Quick Disconnect - Double Crimp - 16-14 AWG
Precio original
$9.92
-
Precio original
$9.92
Precio original
$9.92
$9.92
-
$9.92
Precio actual
$9.92
SKU MDNYD2-187(5)
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| W: | 4.8mm (0.19") |
| F: | 6.5mm (0.26") |
| L: | 20mm (0.79") |
| B: | 11mm (0.43") |
| D: | 4.5mm (0.18") |
| C: | 2.3mm (0.09") |
| Nema Tab: | 0.5 x 4.8mm (0.020 x 0.187") |
| Terminal Material: | Brass (with copper sleeve) |
| Insulation Material: | Nylon |
| Electrical Rating: | 105°C - 600 Volts |
| Amp Rating: | 15AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
