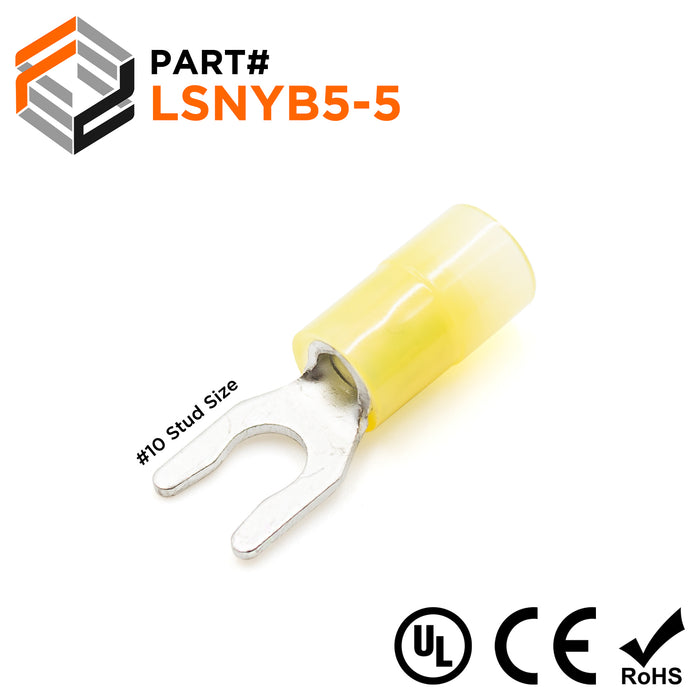

LSNYB5-5 Nylon Insulated Locking Spade Terminals 12-10 AWG
Precio original
$11.80
-
Precio original
$11.80
Precio original
$11.80
$11.80
-
$11.80
Precio actual
$11.80
SKU LSNYB5-5
Disponibilidad:
en stock, listo para ser enviado
Non insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximize tensile strength.
Dimensions & Features:
Product Drawing:
McMaster-Carr: 8007K39
Thomas Betts: RC10-10FL
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Seam: | Brazed |
| Stud Size: | #10 |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Temperature: | 105°C |
| Max Electrical Current: | 50AMP |
| T: | 1.0mm (0.04") |
| L: | 25.2mm (0.99") |
| F: | 7.0mm (0.28") |
| E: | 13.0mm (0.51") |
| W: | 9.0mm (0.35") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 5.3mm (0.21") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 8007K39
Thomas Betts: RC10-10FL
