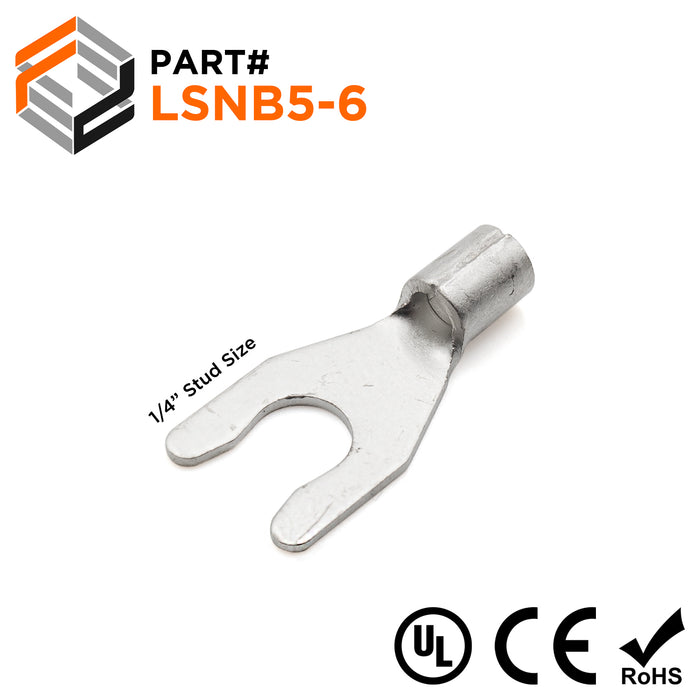

12-10 AWG Non Insulated Locking Spade Terminals, 1/4" Stud, UL Approved, 100 Pieces - LSNB5-6
Precio original
$19.84
-
Precio original
$19.84
Precio original
$19.84
$19.84
-
$19.84
Precio actual
$19.84
SKU LSNB5-6
Disponibilidad:
en stock, listo para ser enviado
NON INSULATED SPADE TERMINALS
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | 1/4" |
| Seam: | Brazed |
| Material: | Tin-Plated Copper |
| T: | 1.0mm (0.04") |
| L: | 25.3mm (1.00") |
| F: | 12.0mm (0.47") |
| E: | 7.0mm (0.27") |
| W: | 12.0mm (0.47") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| D2: | 6.4mm (0.252") |
| Max Electrical Current (12 AWG Wire): | 35A |
| Max Electrical Current (10 AWG Wire): | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
