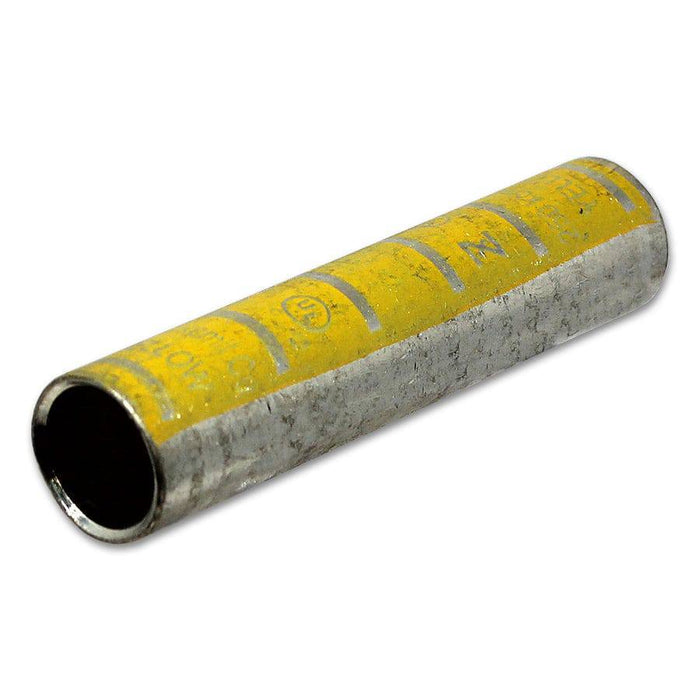

LC250 - 250MCM Long Barrel Splice - Yellow
Precio original
$4.91
-
Precio original
$4.91
Precio original
$4.91
$4.91
-
$4.91
Precio actual
$4.91
SKU LC250
Disponibilidad:
en stock, listo para ser enviado
Long barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 250MCM |
| Color: | Yellow |
| L: | 85.1mm (3.35") |
| D: |
19.1mm (0.75") |
| D1: | 16mm (0.63") |
| Barrel: | Seamless |
| Material: | Tin Plated Copper |
| Voltage Rating: | 600V |
| Max Electrical Current: | 255 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
