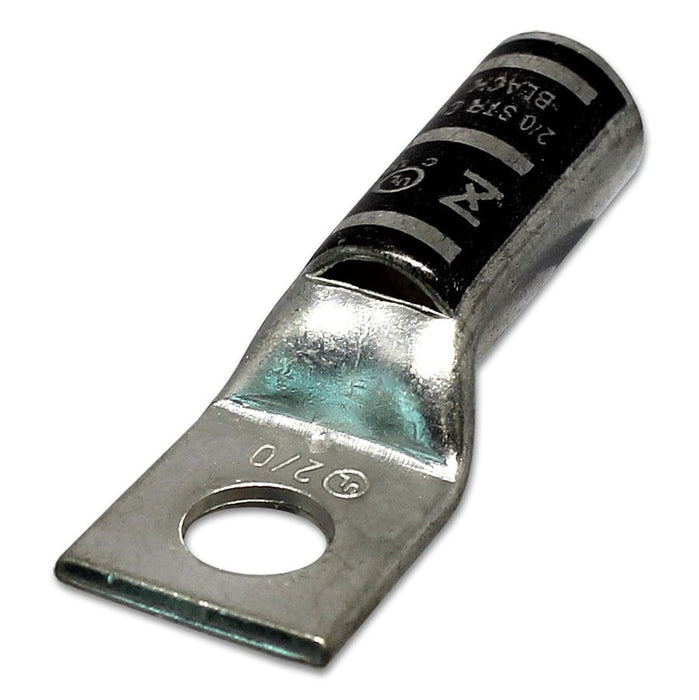

LB2012 - 2/0 AWG Long Compression Lug - 1/2" Stud Size
Precio original
$2.49
-
Precio original
$2.49
Precio original
$2.49
$2.49
-
$2.49
Precio actual
$2.49
SKU LB2012
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Stud Size: | 1/2 Stud |
| Color: | Black |
| L: | 65.5mm (2.58") |
| L1: | 28.7mm (1.13") |
| D: | 20.8mm (.82") |
| D1: | 14.2mm (.56") |
| D2: | 11.6mm (.46") |
| B: | 30.4mm (1.2") |
| E: | 13.1mm (.51") |
| F: | 2.4mm (.098") |
| Material: | Tin Plated Copper |
| Voltage Rating: | 35KV |
| Max Electrical Current: | 265A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
