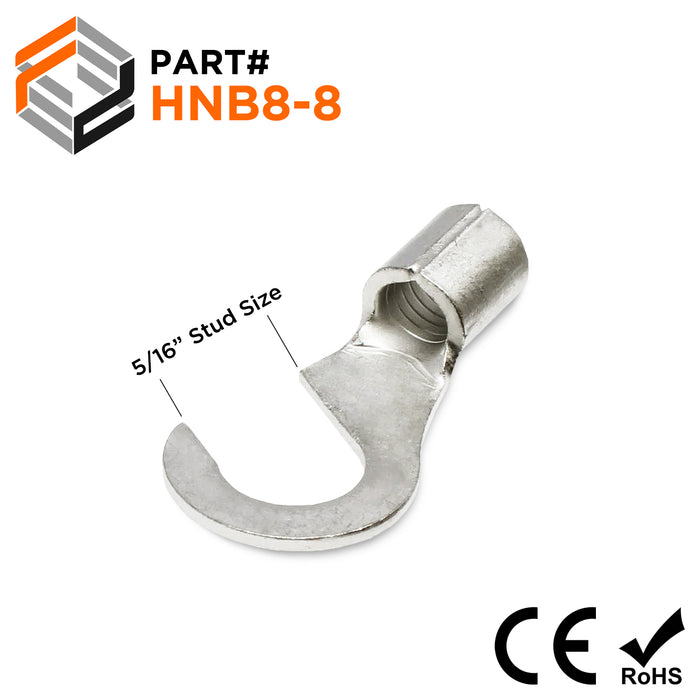

8 AWG Non Insulated Hook Terminals, 5/16" Stud, Brazed Seam, - HNB8-8
Precio original
$11.48
-
Precio original
$11.48
Precio original
$11.48
$11.48
-
$11.48
Precio actual
$11.48
SKU HNB8-8
Disponibilidad:
en stock, listo para ser enviado
NON INSULATED HOOK TERMINALS
Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
INFORMATION & SPECIFICATIONS:
| Wire Range: | 8 AWG |
| T: | 0.047" (1.2mm) |
| L: | 1.161" (29.5mm) |
| F: | 0.543" (13.8mm) |
| E: | 0.335" (8.5mm) |
| W: | 0.591" (15.0mm) |
| D: | 0.283" (7.2mm) |
| D1: | 0.177" (4.5mm) |
| D2: | 0.331" (8.4mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 5/16 Stud |
| Seam: | Brazed |
| Temperature Rating: | 105oC - 600 Volts |
| AMP Rating: | 70 AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
