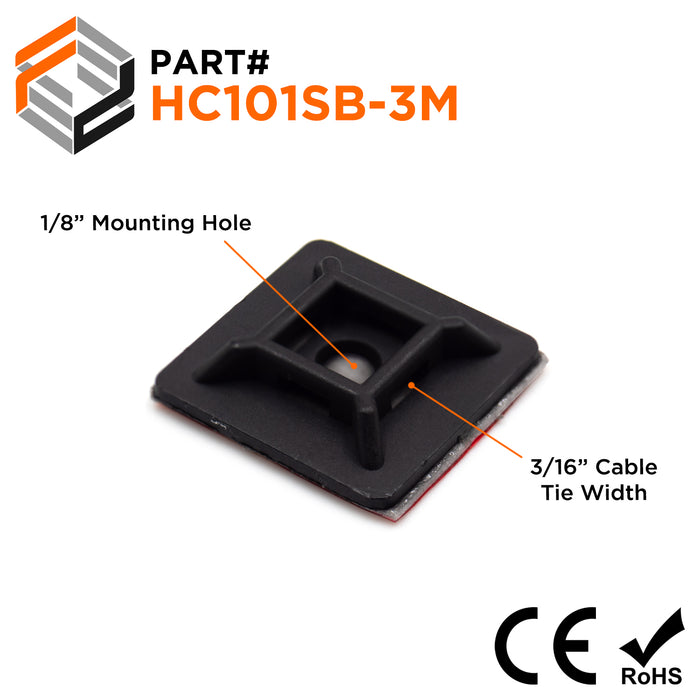

HC101SB-3M - 3/4"LxW Nylon Self-Adhesive Tie Mounts - Cable Tie Width: 3/16", Screw Width: 1/8", Black, 100 Pieces
Precio original
$12.80
-
Precio original
$12.80
Precio original
$12.80
$12.80
-
$12.80
Precio actual
$12.80
SKU HC101SB-3M
Disponibilidad:
en stock, listo para ser enviado
Self-adhesive tie mounts offer lightweight support to wire bundles. For added support of heavy wire bundles, tie mounts are also available with a screw mounting hole. Always apply on a clean, smooth, grease-free surface.
This version of our HC101SB is made with 3M-4229 backing for the strongest hold and durability
Dimensions & Features:
| Nominal Dimensions: | 3/4"L x 3/4"W x 3/16"H |
| Color: | Black |
| L: | 19.4mm (0.76") |
| W: | 19.4mm (0.76") |
| H: | 4.2mm (0.17") |
| Adhesive Thickness: | 0.8mm (0.03") (3M-4229) |
| T (Cable Tie Slot Width): | 4.5mm (0.18") |
| Mounting Hole Size: | 3.6mm (0.14") |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
None
