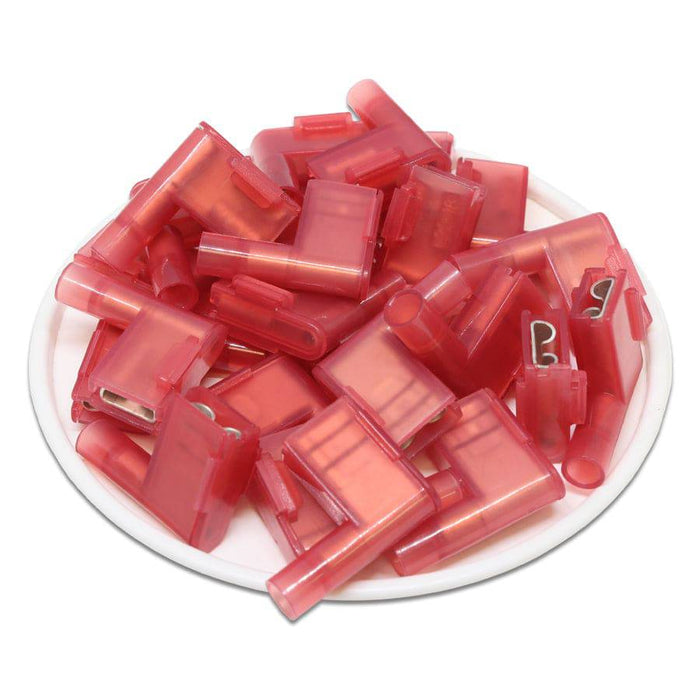

FLDNYDX1-250 Nylon Insulated Quick Disconnects 22-16 AWG Double Crimp - Ferrules Direct

FLDNYDX1-250 - Double Crimp Nylon Insulated Quick Disconnects - 22-16 AWG

$21.24 - $21.24
$21.24
$21.24 - $21.24
$21.24
SKU FLDNYDX1-250
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
true
  • Made of tin plated brass and fully insulated with nylon.
  • Create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation
  • Tolerances may vary from item to item. Please consult the product's Technical Drawing.


    • Dimensions & Features:

    Wire Size: 22-18 AWG
    Color: Red
    Insulation Material: Nylon
    Terminal Material: Tin-Plated Brass
    Crimp: Double
    Electrical Rating: 105oC - 300 Volts
    Current Rating: 3-7AMP
    Nema Tab: 0.032" x 0.25" (0.8mm x 6.35mm)
    L: 20.8mm (0.82")
    F: 7.5mm (0.30")
    W: 6.6mm (0.26")
    C: 1.6mm (0.06")
    B: 11.0mm (0.43")
    D: 4.0mm (0.16")
    UL Recognized: Yes
    RoHS Compliant: Yes
    CE Certified: Yes

    Product Drawing:


    Cross References

    Cross Reference Parts:
    None

    Documents

    Click to view product spec sheet:
