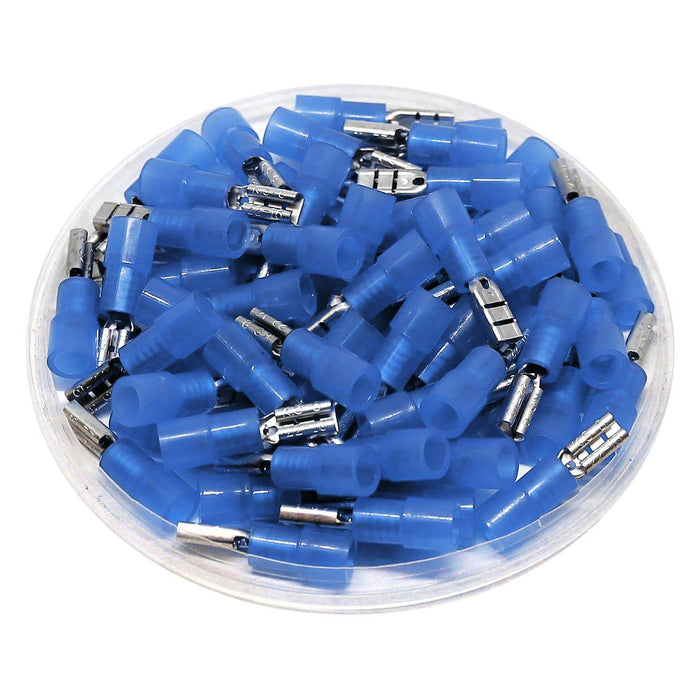

FDNY2-110(5) - 16-14AWG Female Quick Disconnects - Nylon
Precio original
$5.12
-
Precio original
$5.12
Precio original
$5.12
$5.12
-
$5.12
Precio actual
$5.12
SKU FDNY2-110(5)
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.5mm x 2.8mm (0.02" x 0.11") |
| Max Electrical Rating: | 105°C - 600 Volts |
| T: | 0.4mm (0.02") |
| L: | 19.6mm (0.77") |
| F: | 6.5mm (0.25") |
| B: | 11.0mm (0.43") |
| W: | 3.2mm (0.13") |
| D: | 4.5mm (0.18") |
| C: | 2.3mm (0.07") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
