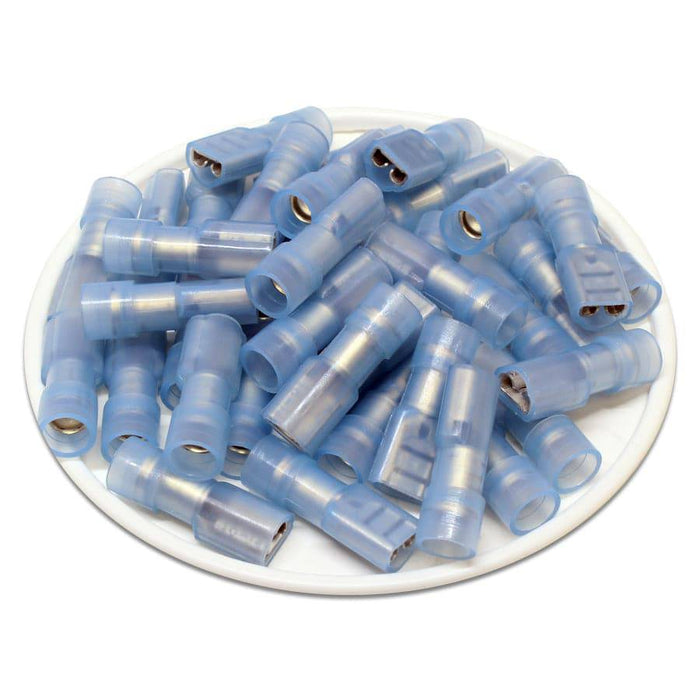

FDFNYD2-187(8) - FEMALE - 16-14AWG Fully Insulated Double Crimp - Nylon - Ferrules Direct

FDFNYD2-187(8) - FEMALE - 16-14AWG Fully Insulated Double Crimp - Nylon

$13.66 - $13.66
$13.66
$13.66 - $13.66
$13.66
SKU FDFNYD2-187(8)
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
true
  • Made of tin plated brass and fully insulated with nylon.
  • Create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation
  • Double Crimp copper sleeve provides maximum electrical conductivity, strengthens barrel and protects wire against stress and high vibration
  • Tolerances may vary from item to item. Please consult the product's Technical Drawing.


    • Dimensions & Features:

    Wire Size: 16-14 AWG
    Color: Blue
    Insulation Material: Nylon
    Insulation Profile: Oval
    Material: Brass
    Max Electrical Rating: 15AMP
    Max Electrical Rating: 105°C - 600 Volts
    Nema Tab: 0.8mm x 4.75mm (0.03" x 0.18")
    W: 5.0mm (0.19")
    F: 6.4mm (0.25")
    L: 20.2mm (0.79")
    B: 11.0mm (0.43")
    D: 5.0mm (0.016")
    T: 0.35mm (0.014")
    UL Approved: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:

    None

    Documents

    Click to view the product spec sheet:
