1/8" Wire Rope Swage Sleeves, Oval Shape, Zinc Plated Copper, 25 Pieces - FD710703
Ahorre 54%
Precio original
$26.97
Precio original
$26.97
-
Precio original
$26.97
Precio original
$26.97
Precio actual
$12.50
$12.50
-
$12.50
Precio actual
$12.50
SKU FD710703
Disponibilidad:
en stock, listo para ser enviado

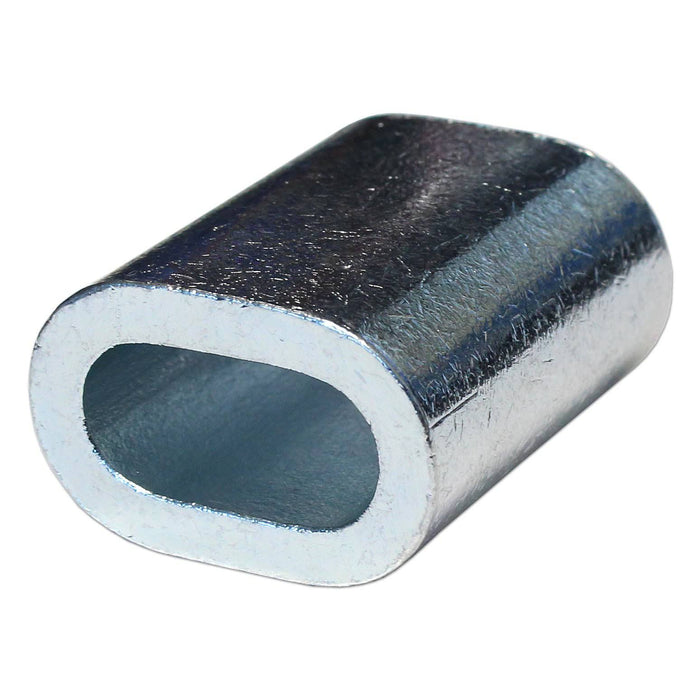

ZINC PLATED COPPER SWAGE SLEEVES: OVAL SHAPE
Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.
DIMENSIONS & FEATURES:
| Wire Range: | 1/8" |
| A: | 0.42" (10.6mm) |
| B: | 0.22" (5.77mm) |
| C: | 0.35" (9.11mm) |
| Terminal Material: | Zinc-Plated Copper |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
