ENACU1810LR - Copper Splice Cap Connectors - 18-10AWG
Precio original
$14.42
-
Precio original
$14.42
Precio original
$14.42
$14.42
-
$14.42
Precio actual
$14.42
SKU ENACU1810LR
Disponibilidad:
en stock, listo para ser enviado
| PRODUCT DESCRIPTION | |||
|

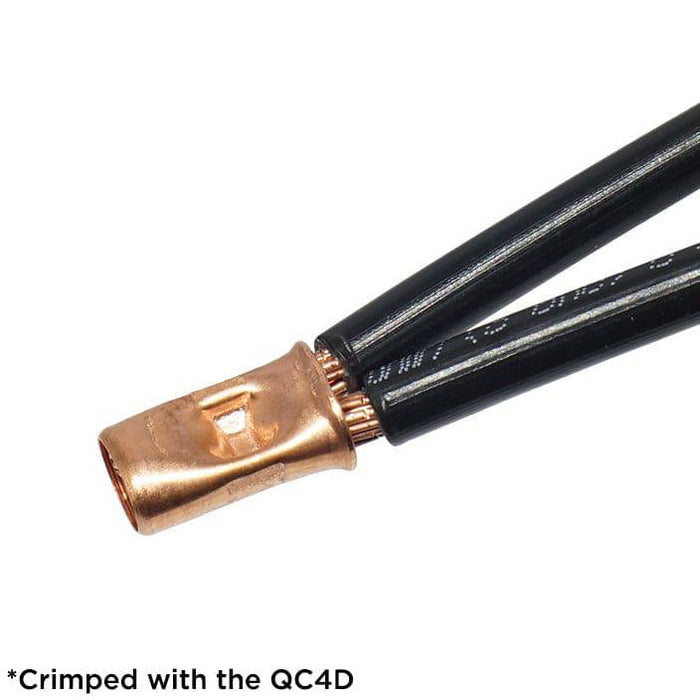

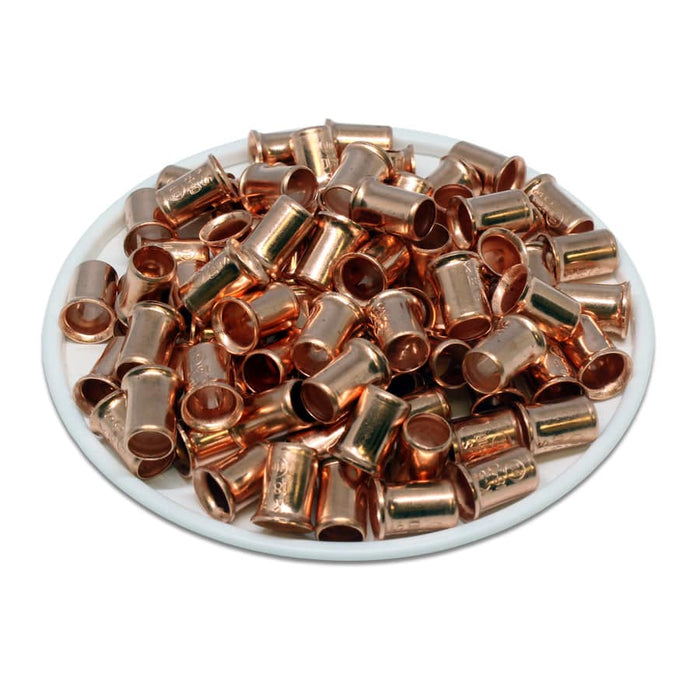

Copper splice caps are crimpable connectors designed for use with both stranded and solid wires. |
|||
| DIMENSIONS AND FEATURES | |||
| L: | 9.5mm (0.37") | Wire Range: | 18-10AWG |
| D: | 7.5mm (0.30") | Material: | Copper |
| C: | 5.2mm (0.20") | Max Electrical Current: | 18AMP |
| W: | 6.1mm (0.24") | Max Electrical Rating: | 105oC - 600 Volts |
| UL Recognized: | Yes | ||
| CE Certified: | Yes | ||
| RoHS Compliant | Yes | ||
|
TECHNICAL DRAWING |
|||
 |
|||
