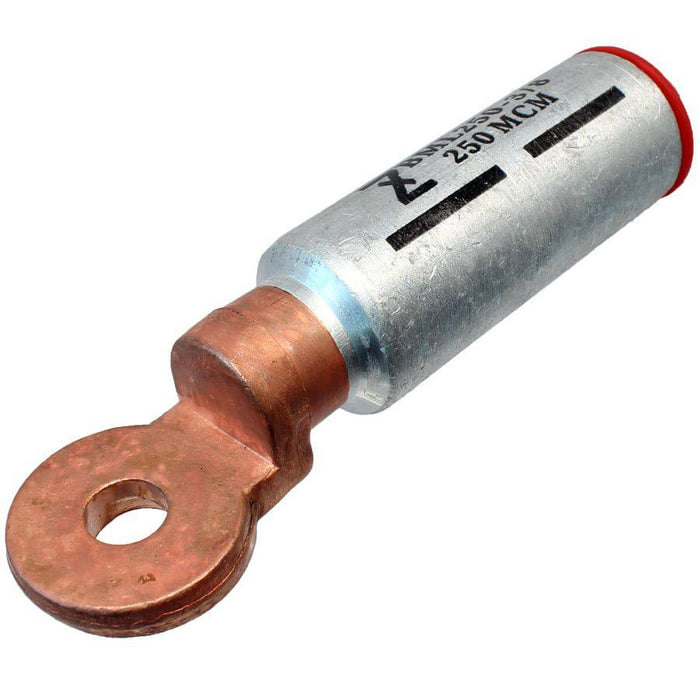

BML150-10 - Bimetallic Compression Lugs - 250MCM (150mm²) - 3/8" Stud
Precio original
$14.47
-
Precio original
$14.47
Precio original
$14.47
$14.47
-
$14.47
Precio actual
$14.47
SKU BML150-10
Disponibilidad:
en stock, listo para ser enviado
Bimetallic lugs are useful when an aluminum cable has to be terminated by a copper bus bar or copper contact. If only copper or aluminum lugs are used, a galvanic action occurs due to dissimilar contact. The use of bimetallic lugs thus ensures a technically sound and durable joint. The Aluminum barrel is friction welded to the copper palm, thereby achieving the best possible transition between barrel & palm.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 250MCM |
| A: | 120.0mm (4.72") |
| B: | 60.0mm (2.40") |
| D: | 16.5mm (0.65") |
| E: | 30.0mm (1.18") |
| G: | 33.0mm (1.30") |
| F: | 7.0mm (0.28") |
| Terminal Material: | Aluminum and Copper |
| Stud Size: | 3/8" |
| Operating Temperature: | -40oC - 100oC |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
