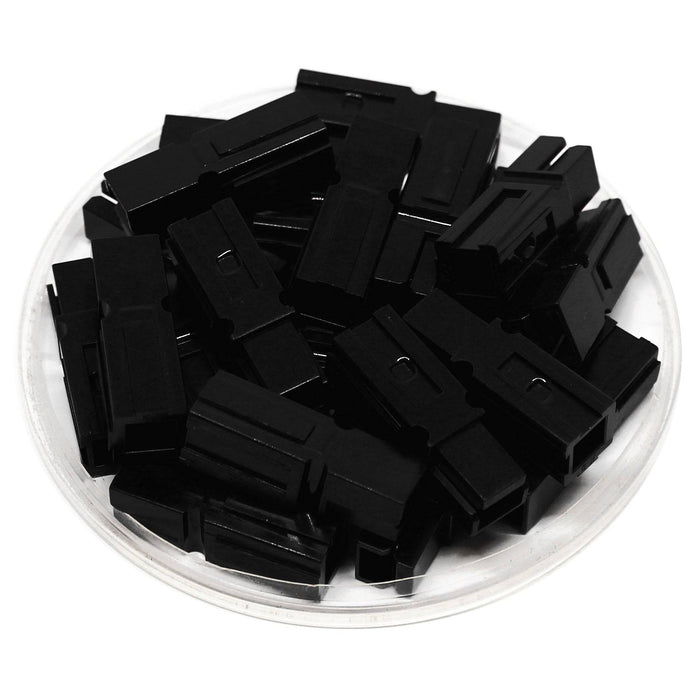

BMC1S-BK - 20-10 AWG Single Pole Housing - 15/45AMP - Black
Precio original
$0.42
-
Precio original
$0.42
Precio original
$0.42
$0.42
-
$0.42
Precio actual
$0.42
SKU BMC1S-BK
Disponibilidad:
en stock, listo para ser enviado
The BMC1S Series is the smallest battery modular housing size. They can be used for wire-to-wire or wire-to-board applications. Wire sizes from 20 AWG (0.75mm²) to 10 AWG (6.00mm²) offer power capabilities up to 45 amps.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 20-10 AWG |
| Color | Black |
| L | 0.97" (24.6mm) |
| W: | 0.27" (6.9mm) |
| H: | 0.31" (7.9mm) |
| Spring Material: | Stainless Steel |
| Housing Material: | Polycarbonate (PC) |
| Temperature Range: | -20°C to 75°C |
| AMP Rating: | 15 - 45AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
