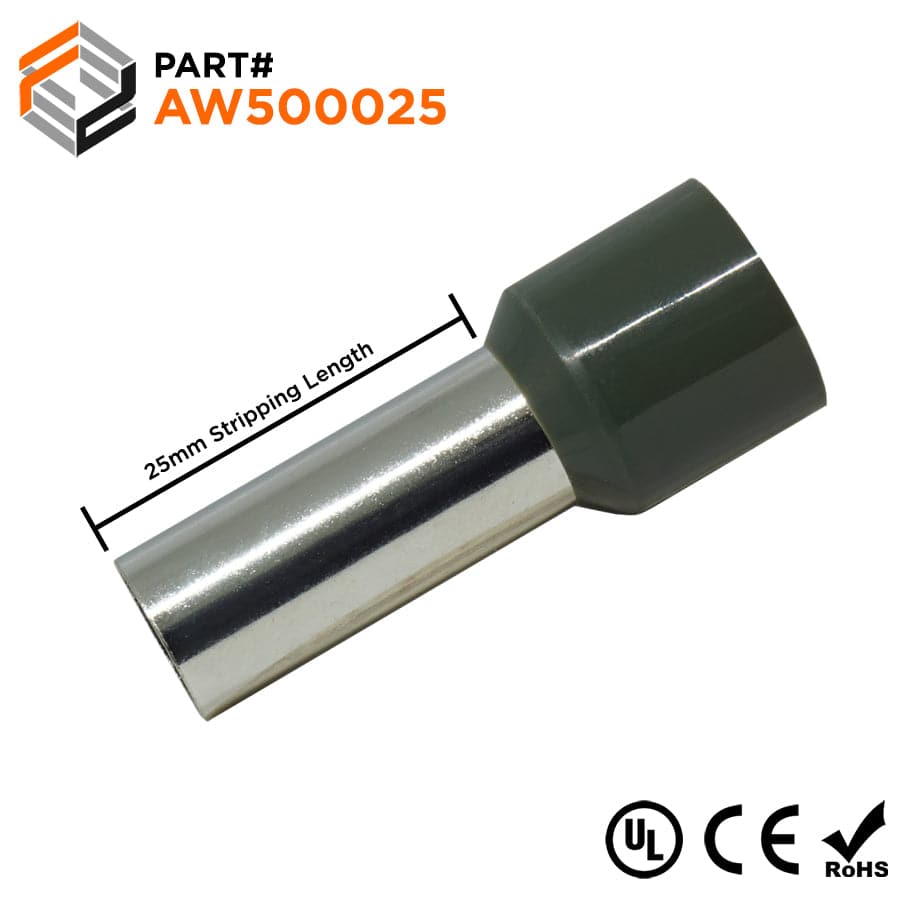

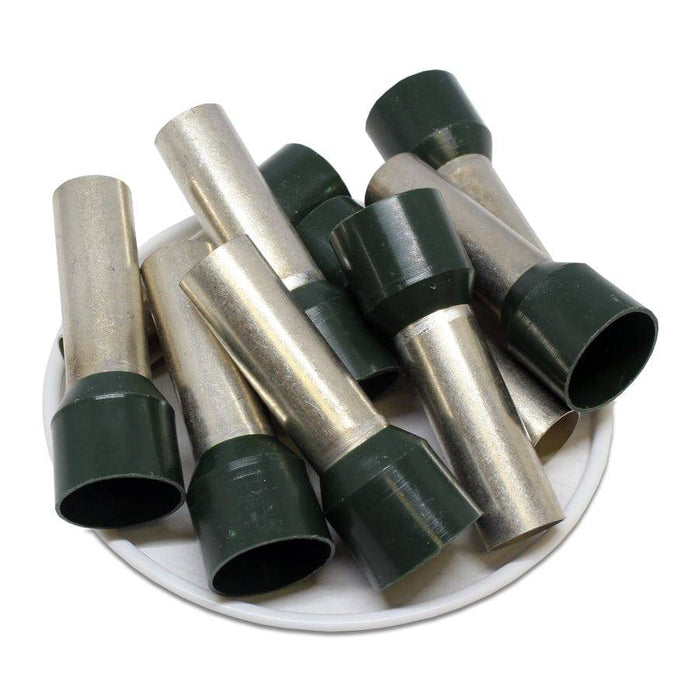

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:


Technical Drawing:

Cross References

Cross Reference Parts:

ABB:XUSG01910
Altech Corp:FII0125
American Electrical:11202500
Burndy:YF0125IT
GE Renewable Energy: 104W4400P019
Tyco AMP:4-966 066-3
ZF:V3AE1627

Documents

Click to view product spec sheet:

Videos
