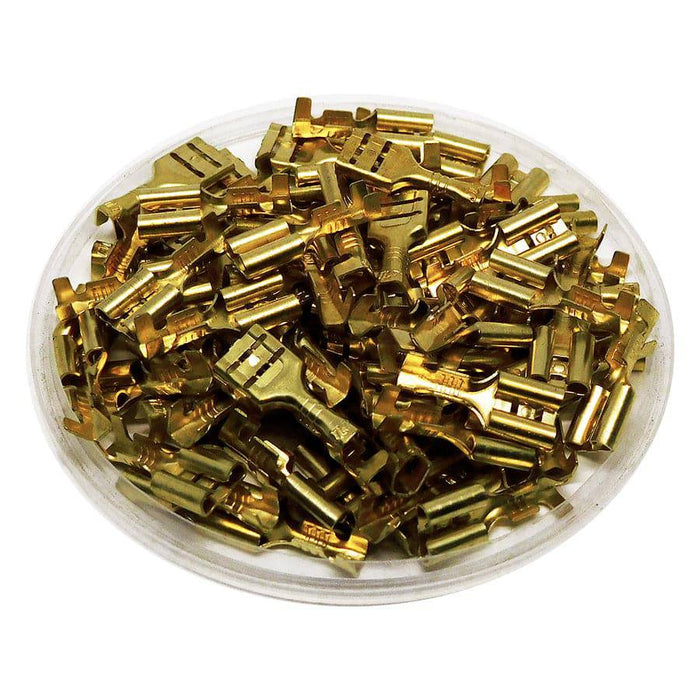

601LRN - 16-14AWG Female Open Barrel Quick Disconnect - No Locking Tab - .250" x .20" NEMA Tab
Precio original
$5.35
-
Precio original
$5.35
Precio original
$5.35
$5.35
-
$5.35
Precio actual
$5.35
SKU 601LRN
Disponibilidad:
en stock, listo para ser enviado
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often
Dimensions & Features:
Technical Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click here to check out our YouTube channel!
Dimensions & Features:
| Wire Size: | 16-14 AWG | |
| L: |
|
|
| F: | 7.8mm (0.30") | |
| W: | 6.8mm (0.26") | |
| D: | 5.5mm (0.21") | |
| D1: | 3.5mm (0.13") | |
| T: | 2.8mm (0.11") | |
| NEMA Tab: | 0.8mm x 6.35mm (0.032" x 0.250") | |
| Terminal Material: | Brass - Untinned |
|
| Surface Treatment: | Standard Chemical Treatment |
|
| Max Electrical Current: | 15A | |
| CE Certified: | Yes |
|
| RoHS: Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
